Pumpy 180kw

Pumpy 180kw

Pumpy 180kw

Pumpy 180kw

180kw

180kW Pumpy

Integrated design lowers installation costs and initial investment by combining multiple charging facilities.

Integrated design lowers installation costs and initial investment by combining multiple charging facilities.
180kw

All-in-one

The integrated design of our chargers reduces installation costs by combining multiple charging stations into a single unit, significantly cutting down on the equipment and labor required.

This approach leads to a lower initial investment, making it easier and more cost-effective to set up and expand electric Vehicle charging infrastructure.
180kw
180kw
bg

Charges Together, Effortlessly

Our charging system features ultra-high current charging capability and can power both 150V and 1000V vehicles at maximum efficiency.

With a 500A output, it can continuously charge 1000V vehicles at up to 640 kW from a single power cabinet. Additionally, it offers a 400A (max 600A) output without the need for liquid cooling, providing reliable performance under various conditions.
bg

Exceptional cooling
efficiency

Our charging system delivers ultra-high current capability, efficiently charging vehicles from 150V to 1000V with support for CCS, NACS, and CHAdeMO connectors.

Designed with thermal analysis and duct framing, it minimizes heating through natural airflow, while a modular structure blocks thermal interference for reliable performance.

Customizing

Designing with thermal analysis and duct framing to minimize heating through natural air flow for intake and exhaust. Utilizing a modular room structure for independent functionality to block thermal interference.
180kw180kw
180kw

More Details

12” Display (Press-button options)

Payment (Credit Card Reader)

OCPP 1.6 (2.0.1 for universal)

ISO 15118 (Plug and Charge Standards)

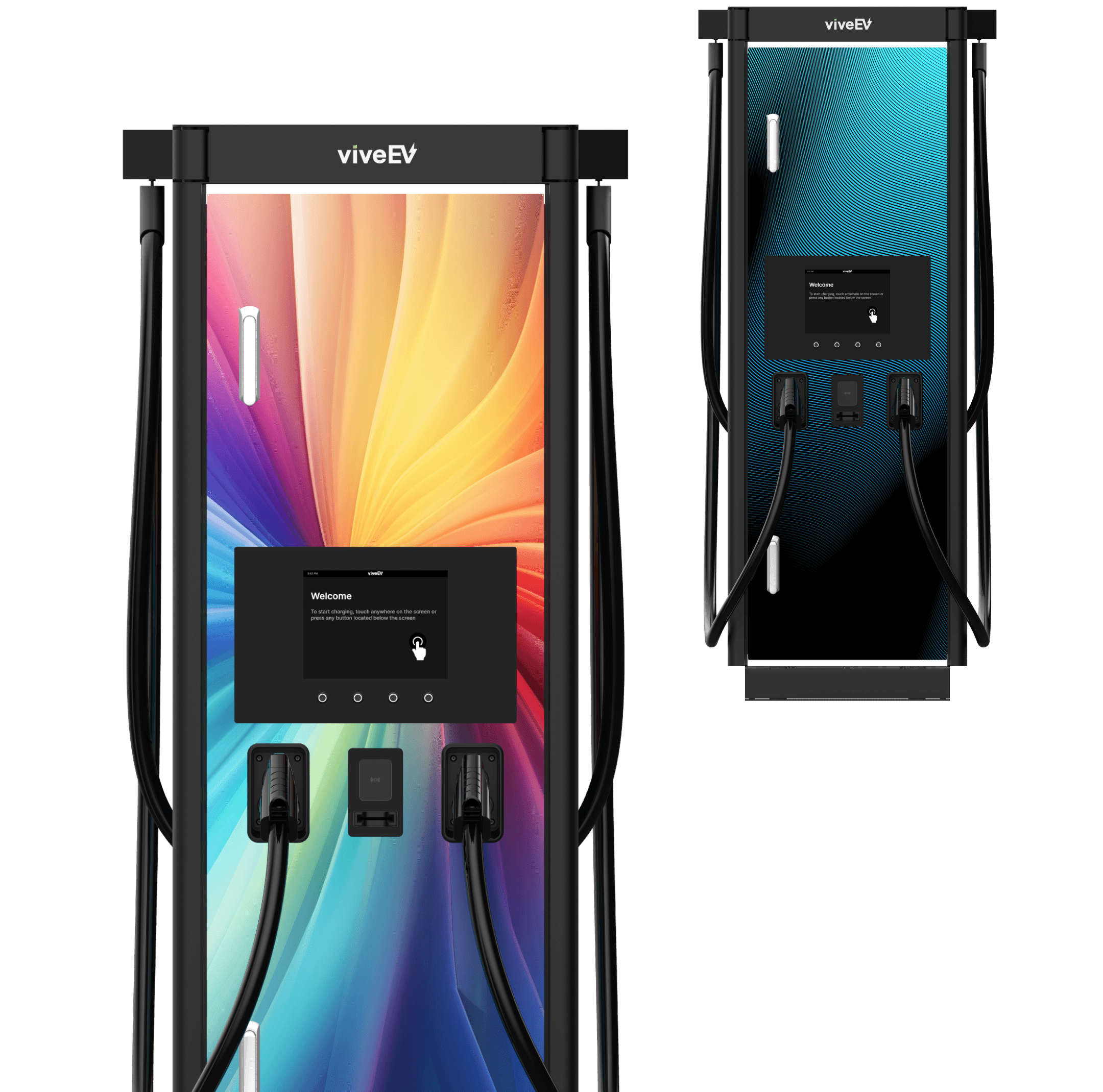

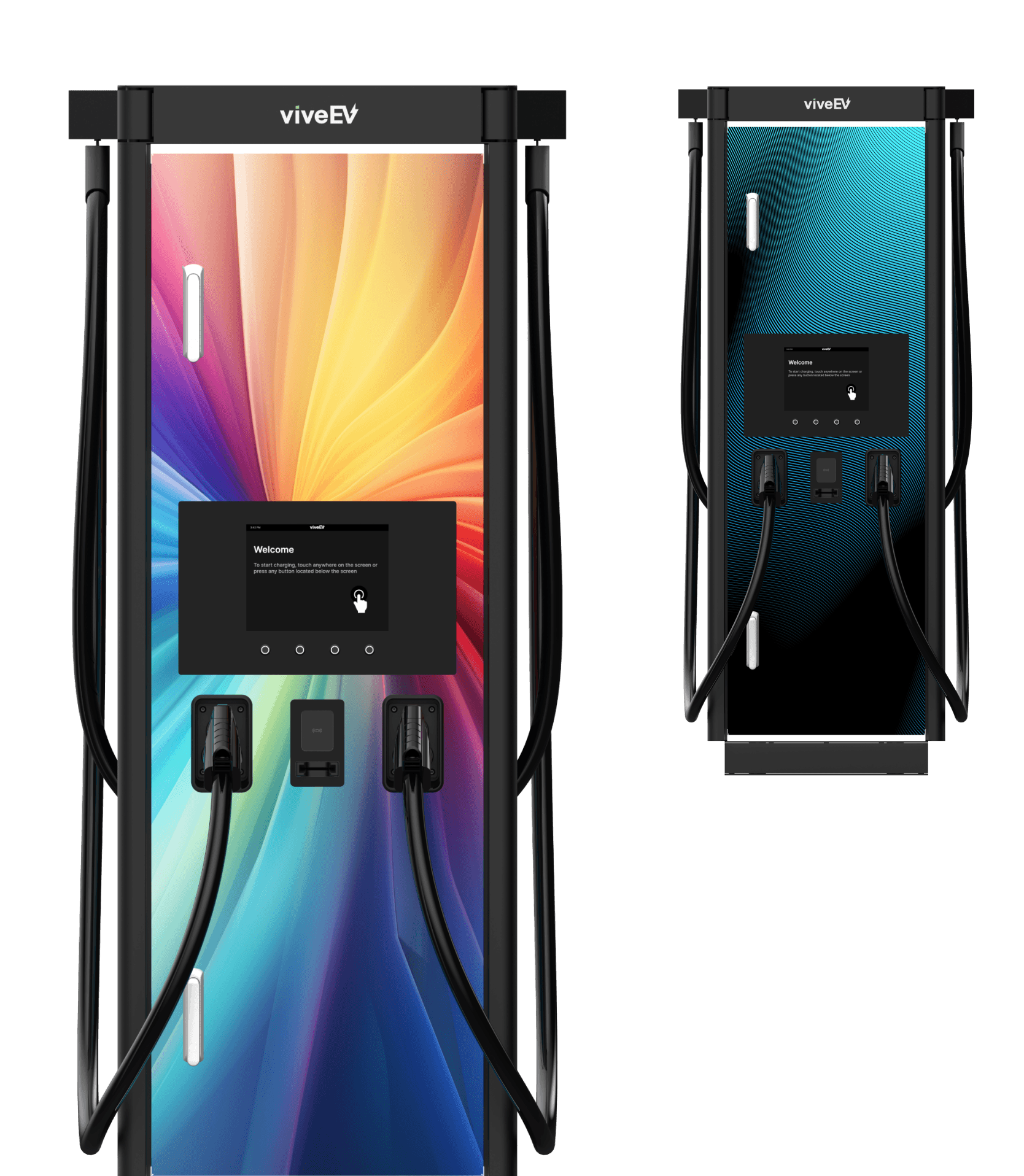

Custom Branding

CCS1 (Max 500A), NACS(Max 380A)

bg
viveEV design

Combining
multiple charging

Exceptional cooling efficiency

Technical specifications

Electrical

AC Input Source480Y/277VAC ±10%(60Hz)
AC Input Connection3-phase, L1,L2,L3,PE
AC Input Current230A
Input power rating192kVA
Output Power180kW or 90kW x 2
Output Voltage RangeCCS1 : 150 ~ 1000Vdc
NACS : 150 ~ 500Vdc
CHAdeMO: 150 ~ 500Vdc
Max. DC Output Current200A (DC 1ch) / 180A (DC 2ch)
Current THD<5%@full power
Power factor200A (DC 1ch) / 180A (DC 2ch)
Efficiency>94%

Interface

Network Connection10/100 Base-T Ethernet
Plug TypeCCS1, CHAdeMO, NACS
Payment MethedISO14443, NFC, RFID, MiFare, ISO7810/ISO7811 Tracks1-3
Display12.1” LCD Screen(Optional Touch Screen)

Environment

Operating Temperature-20°C ~ 50°C (Option : -35°C ~ 50°C) / -4°F ~ 122°F (Option : -31°F ~ 122°F)
Humidity95% Non-Condensing
Enclosure RatingIP54, NEMA 3R
AltitudeUp to 2000m

General

ProtectionUnder Voltage Protection, Over Voltage Protection, Over Current Protection, Over Temperature Protection, etc
Compliance and SaftyUL2202, UL2231-1, UL2231-2, ISO15118, IEC61851-1, IEC61000-6-3, DIN70121, CHAdeMO 0.9
Dimension (WxDxH)700 x 833 x 2000 mm (Gross Size 910 x 908 x 2160)/ 2.29 x 2.73 x 6.56 ft (2.98 x 2.98 x 7.08 ft)
Weight450kg / 992Ibs
Charge Cable Length6 m (19.69 ft)
