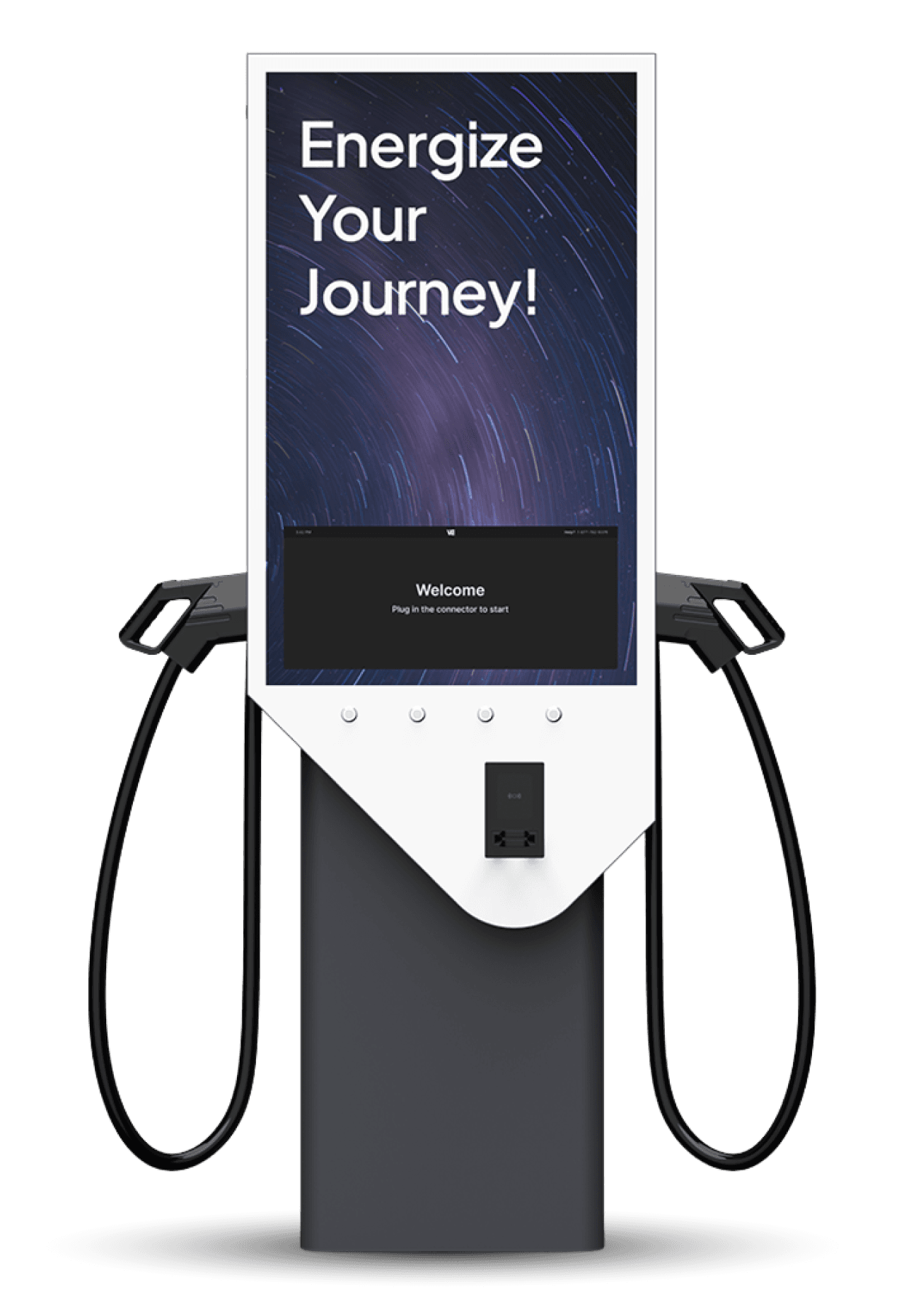

viveEV 80kW EV Charger Dispenser

80kW Vision

Our compact design minimizes installation space, making it perfect for both urban settings and limited spaces

Our compact design minimizes installation space, making it perfect for both urban settings and limited spaces

viveEV 80kW EV Charger Dispenser

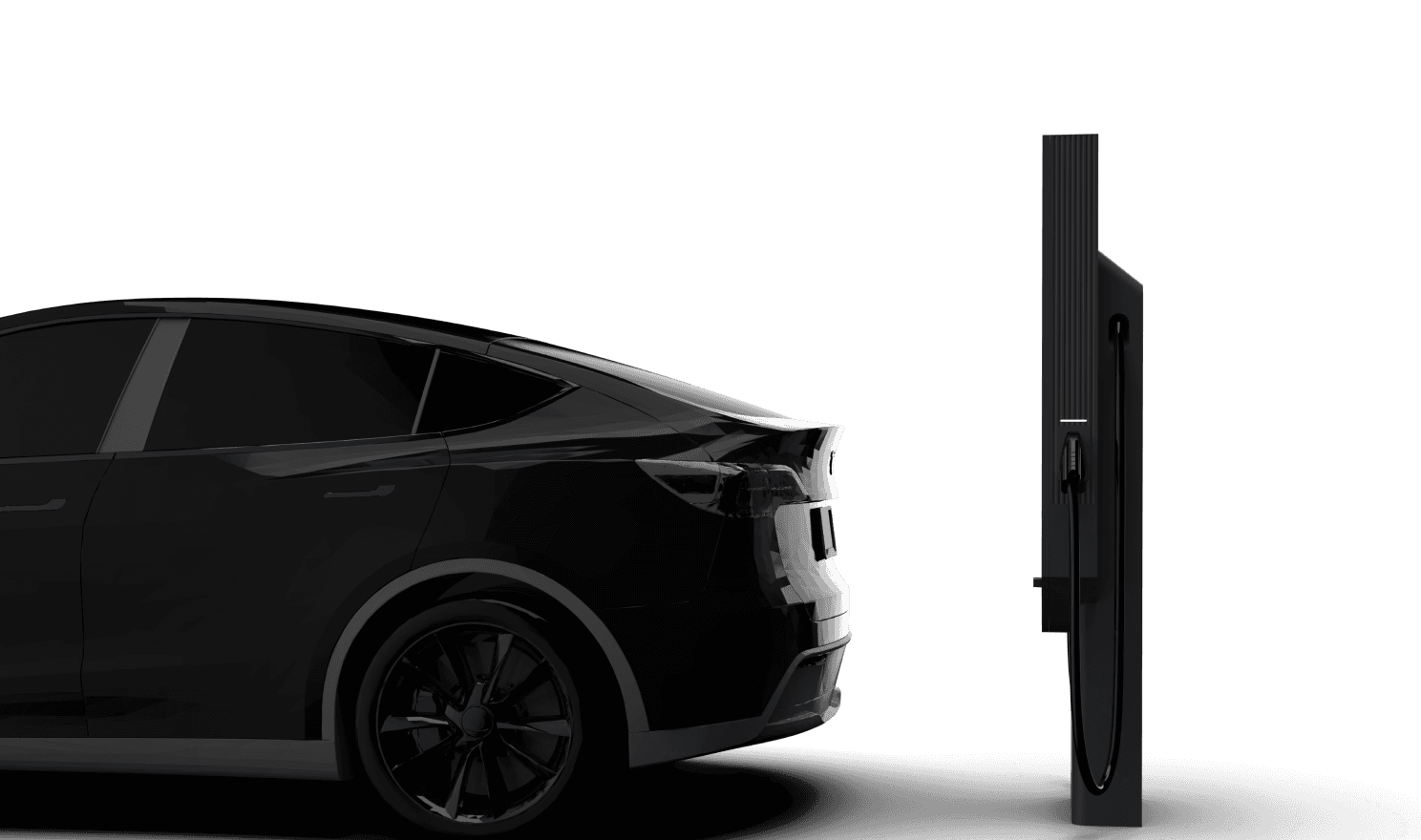

viveEV 80kW EV Charger Dispenser Footprint

Minimizes Footprint

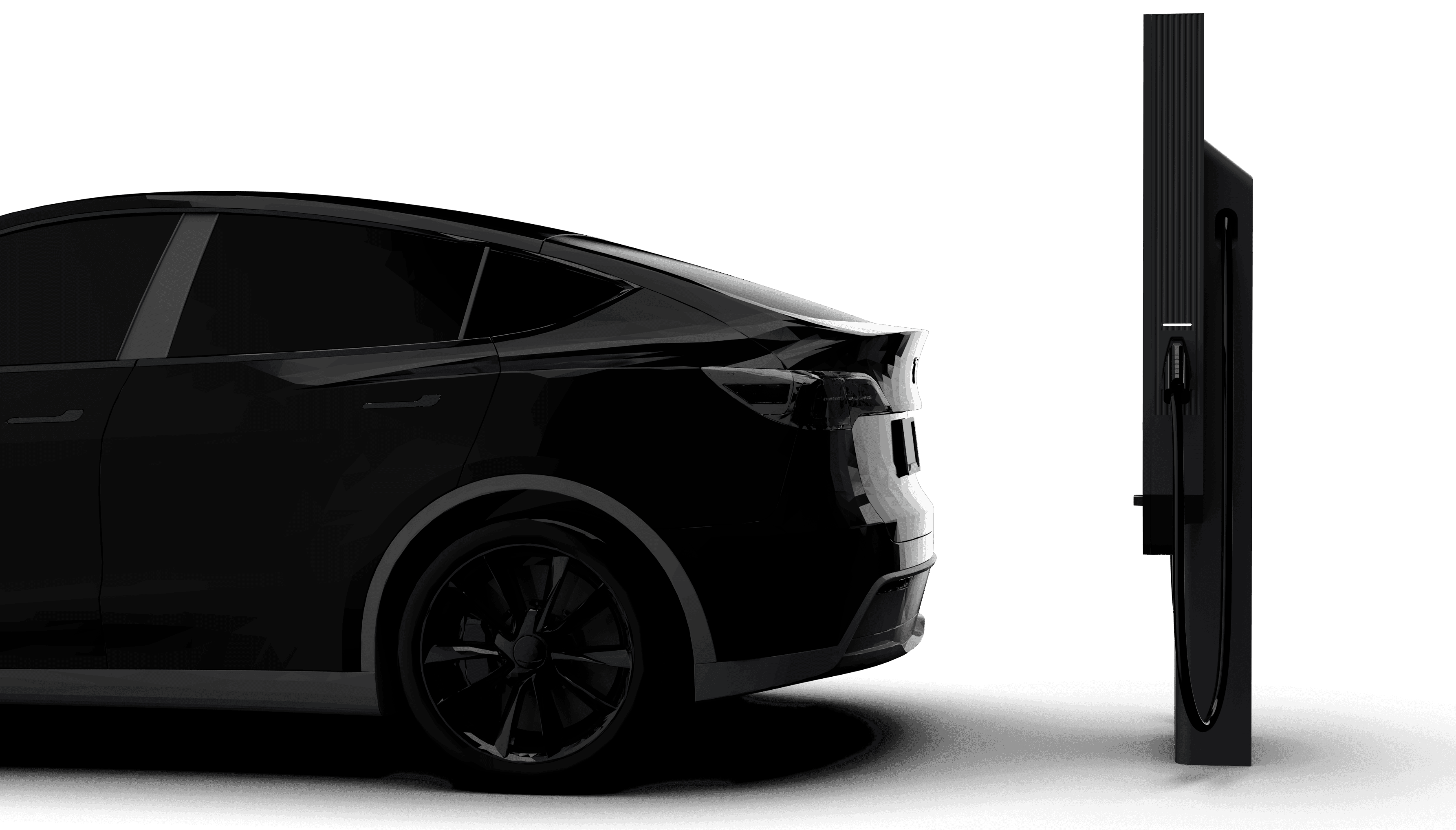

Our compact design reduces Installation space requirements, making it ideal for urban environments and locations with limited space.

Overcome space
constraints

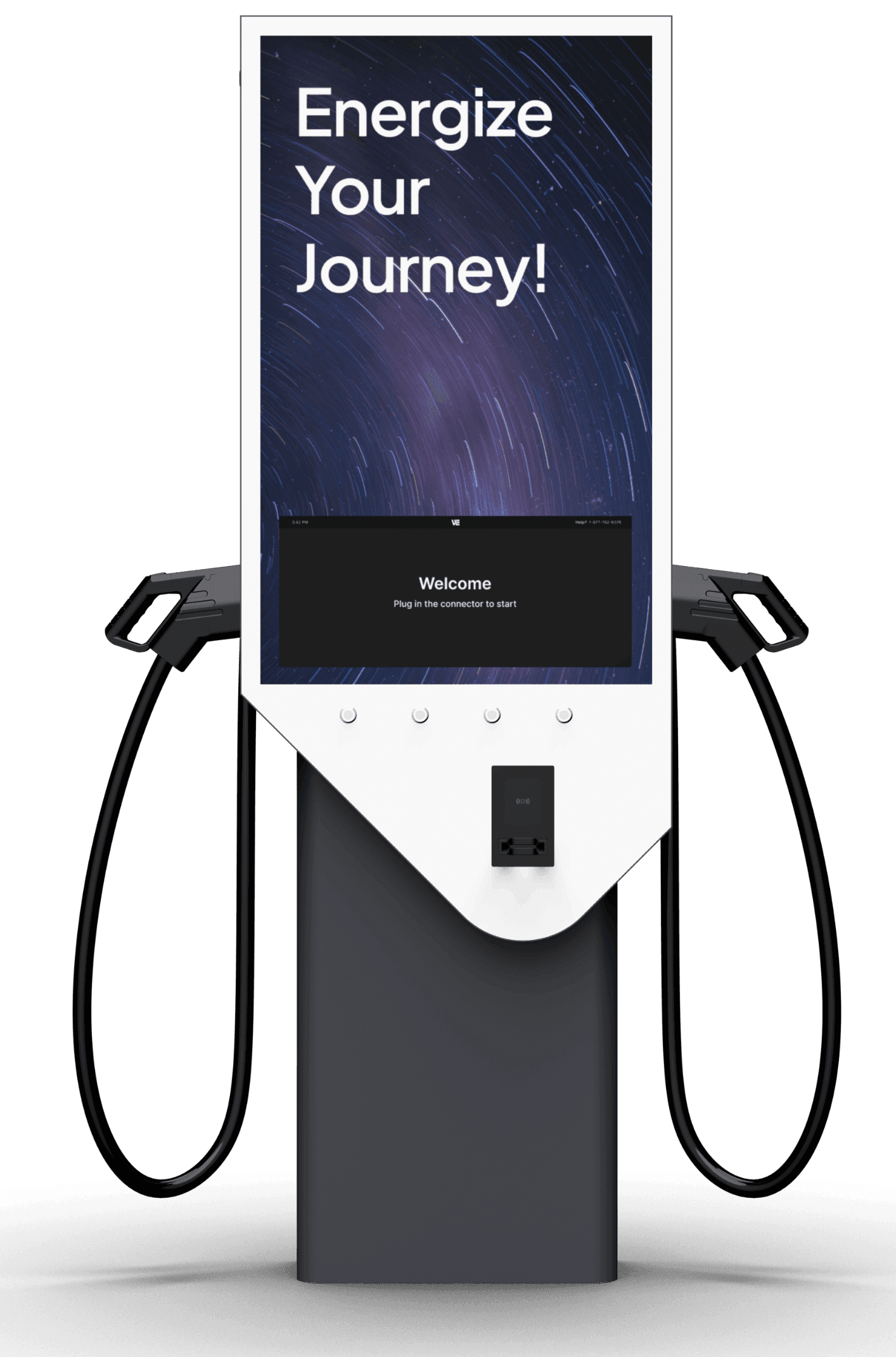

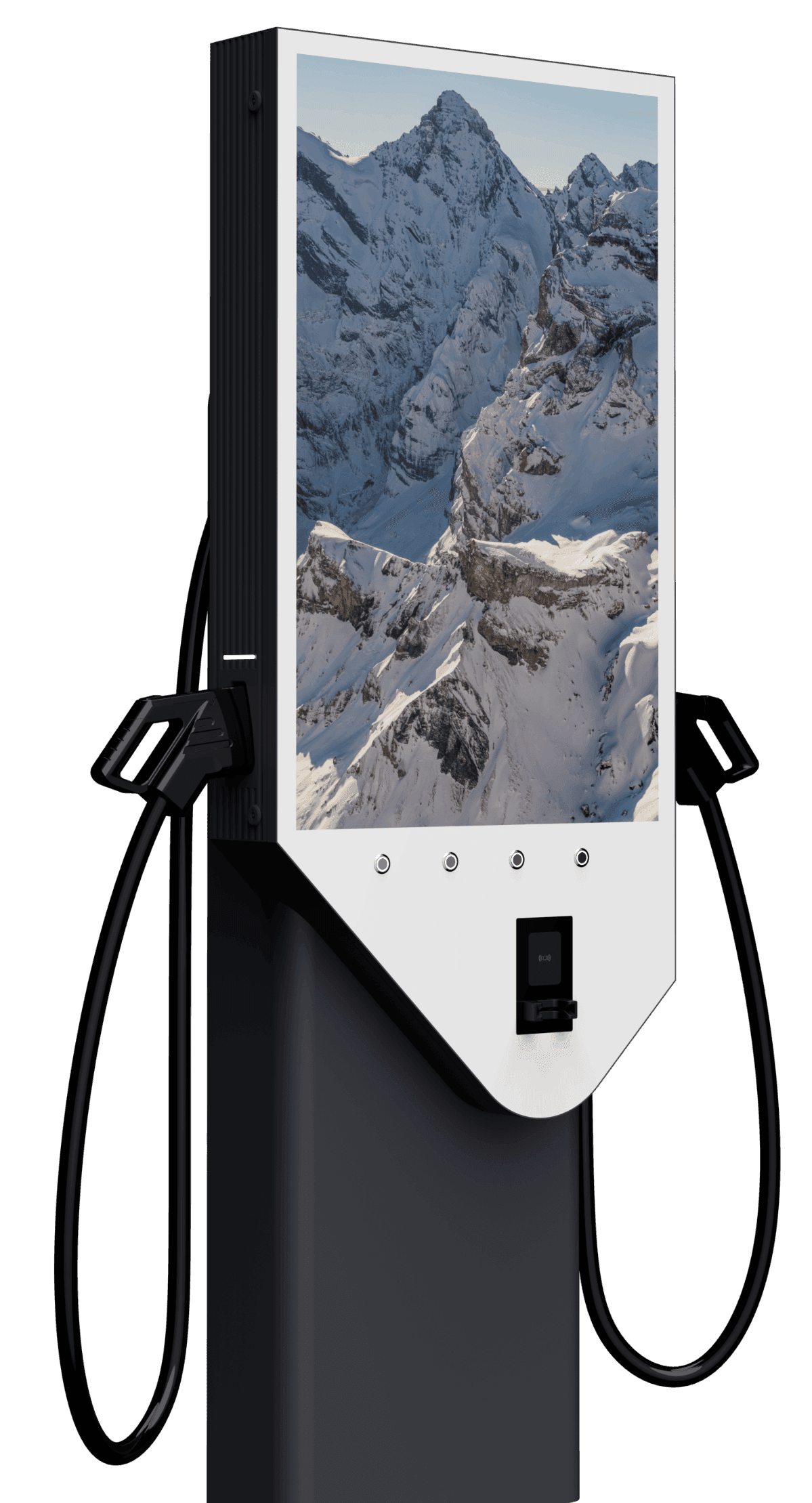

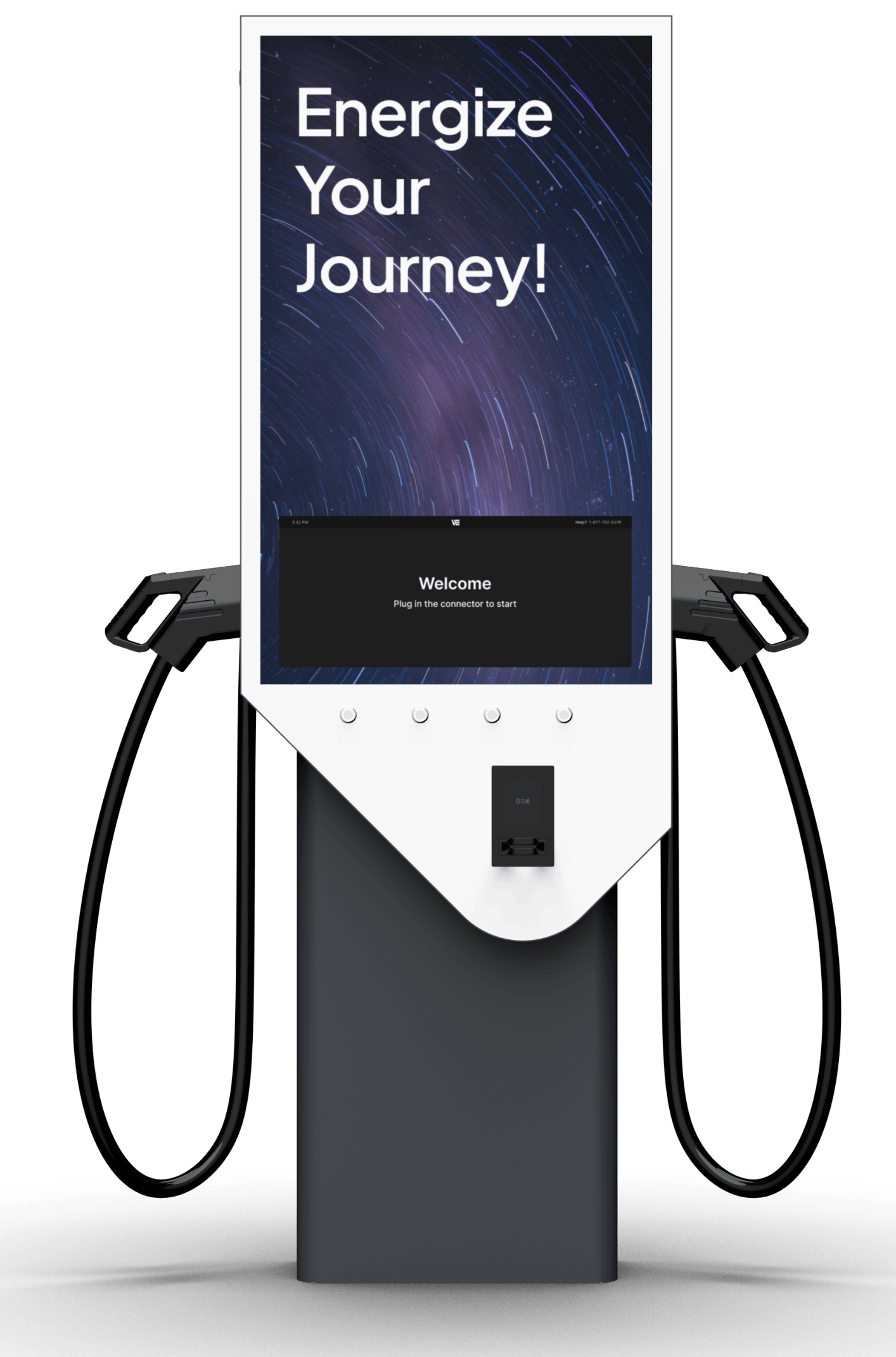

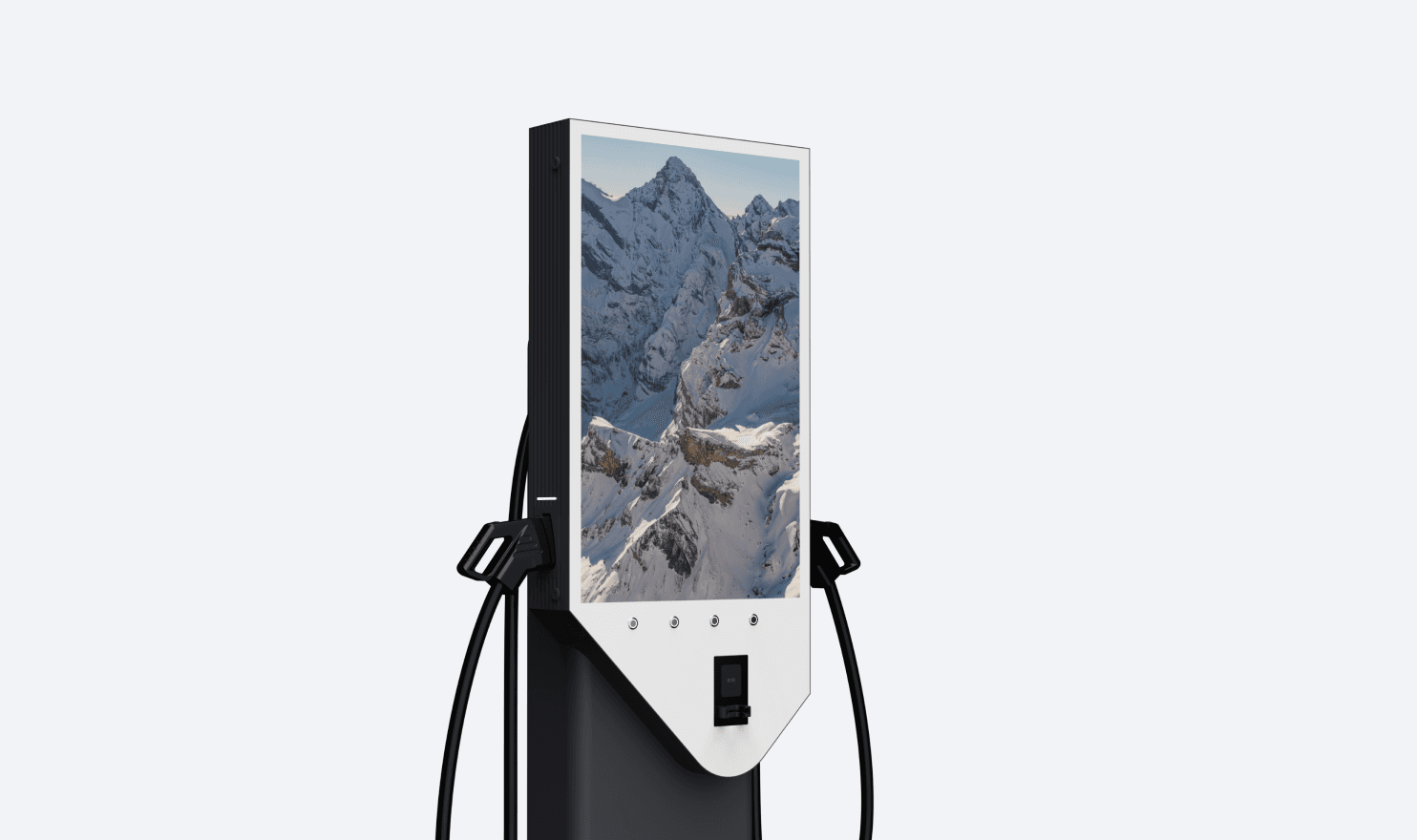

Equipped with a 32−inch Full HD display, this product offers exceptional flexibility with its slim design that optimizes installation space. The vibrant display is perfect for eye-catching and highly visible advertising, enhancing visibility and engagement.

32inchFHD
viveEV 80kW EV Charger Dispenser 32inch FHD Display
viveEV 80kW EV Charger Dispenser Power Module Specification

Flexible Power for Efficiency

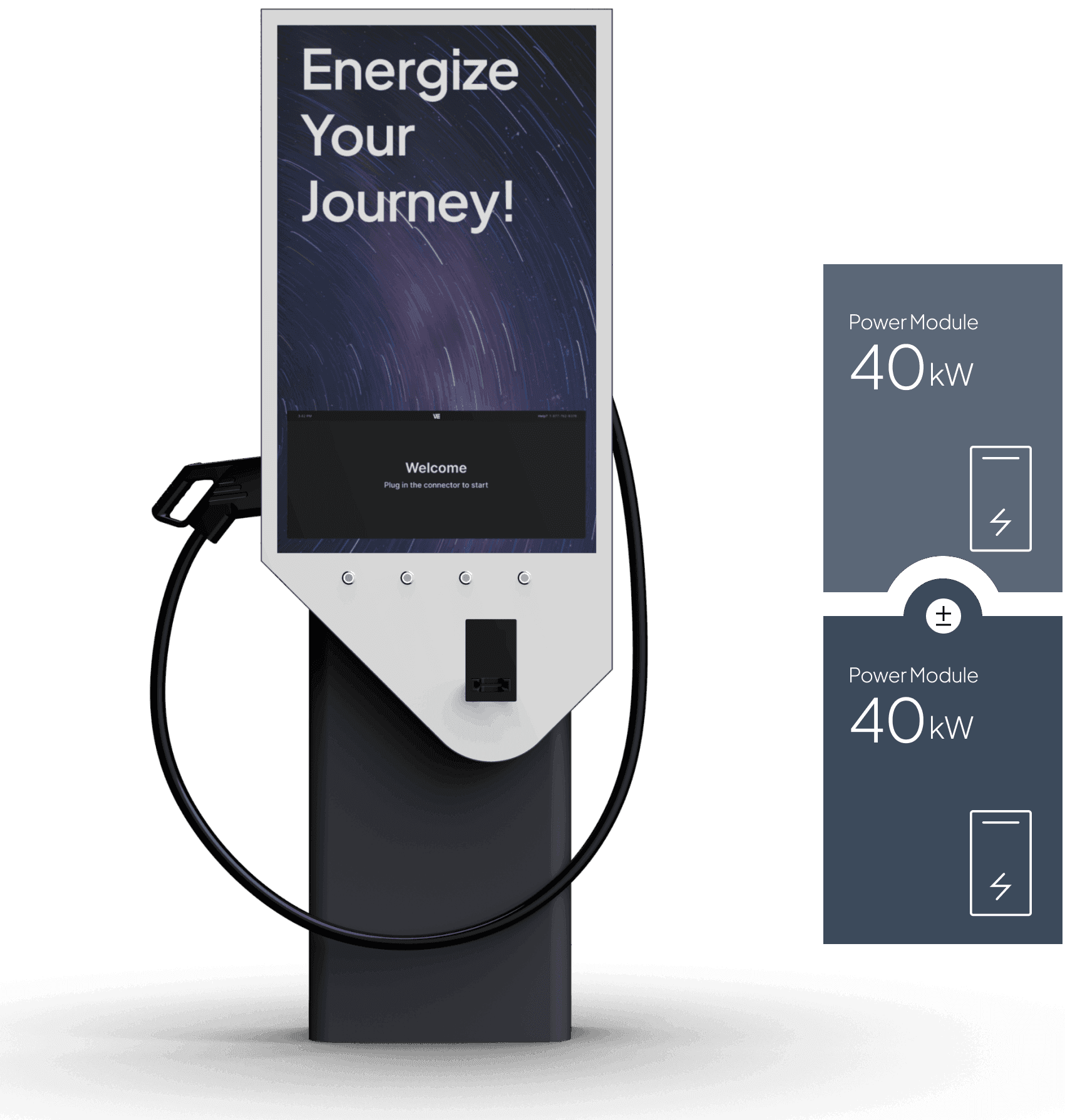

The charger offers a flexible power configuration, allowing for use as a 40kW charger by removing one module. Additionally, it supports a single-channel cable option, enabling seamless adaptation to specific charging needs.

40kW40kW
viveEV 80kW EV Charger Dispenser
Optional

Advertising revenue

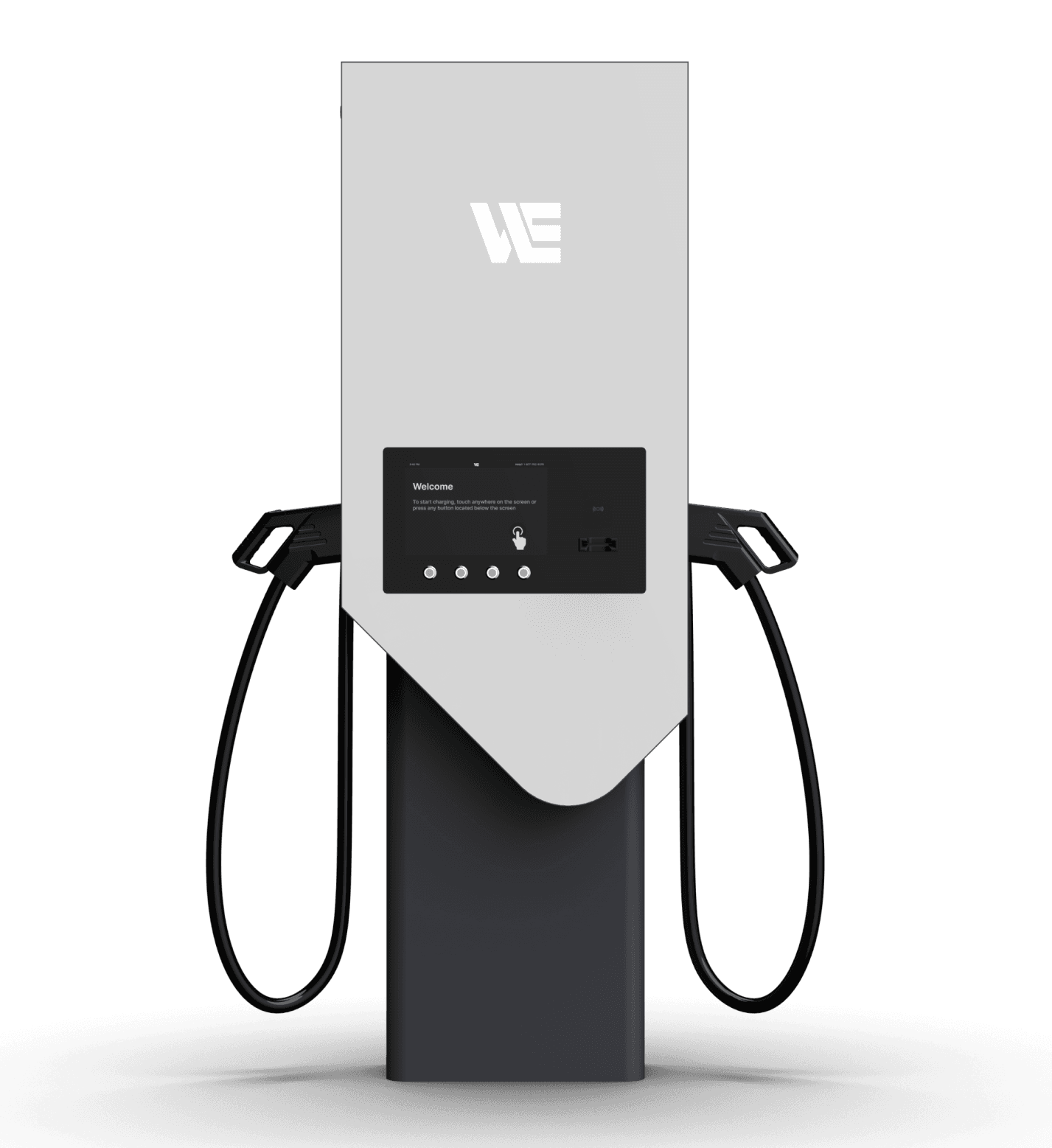

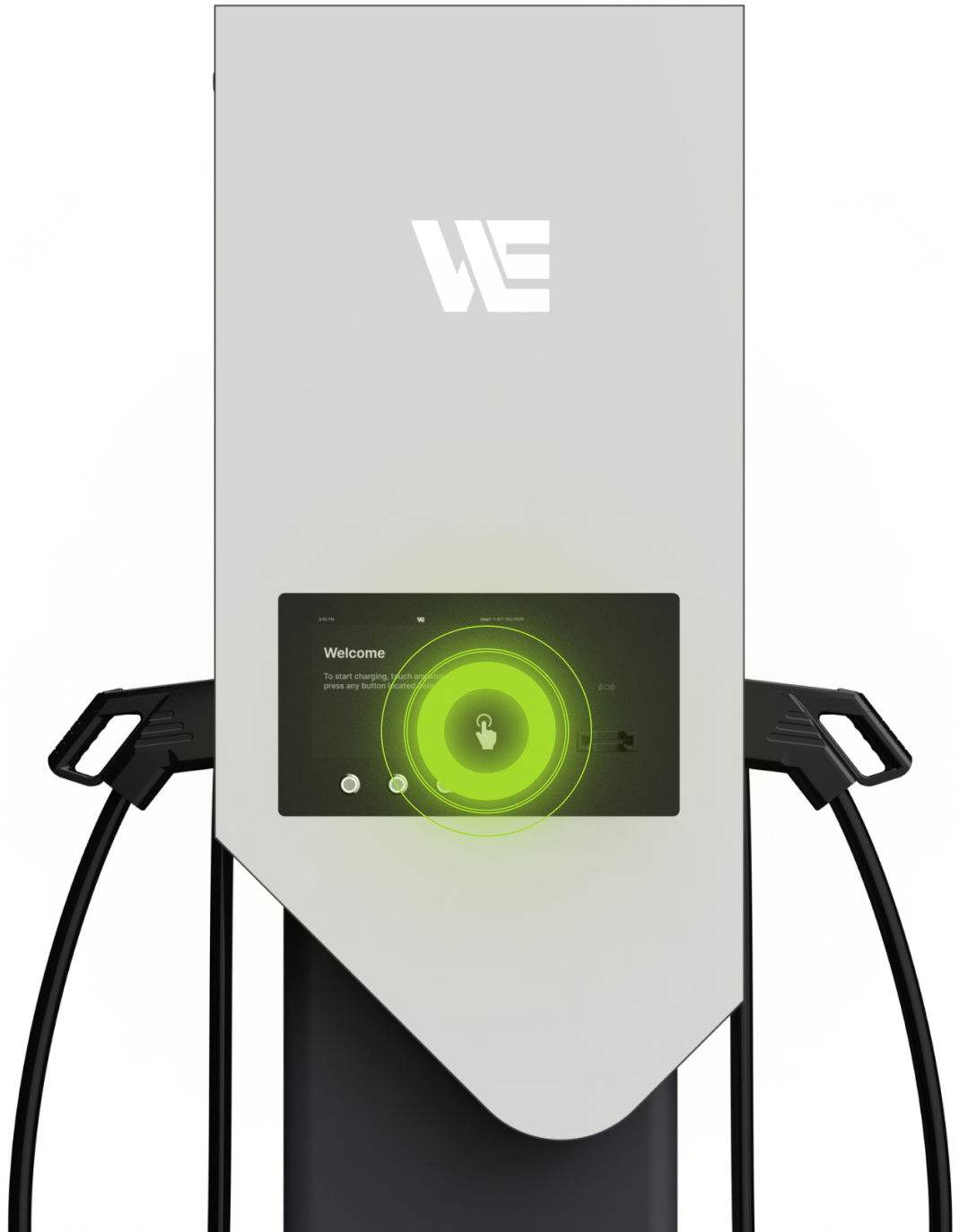

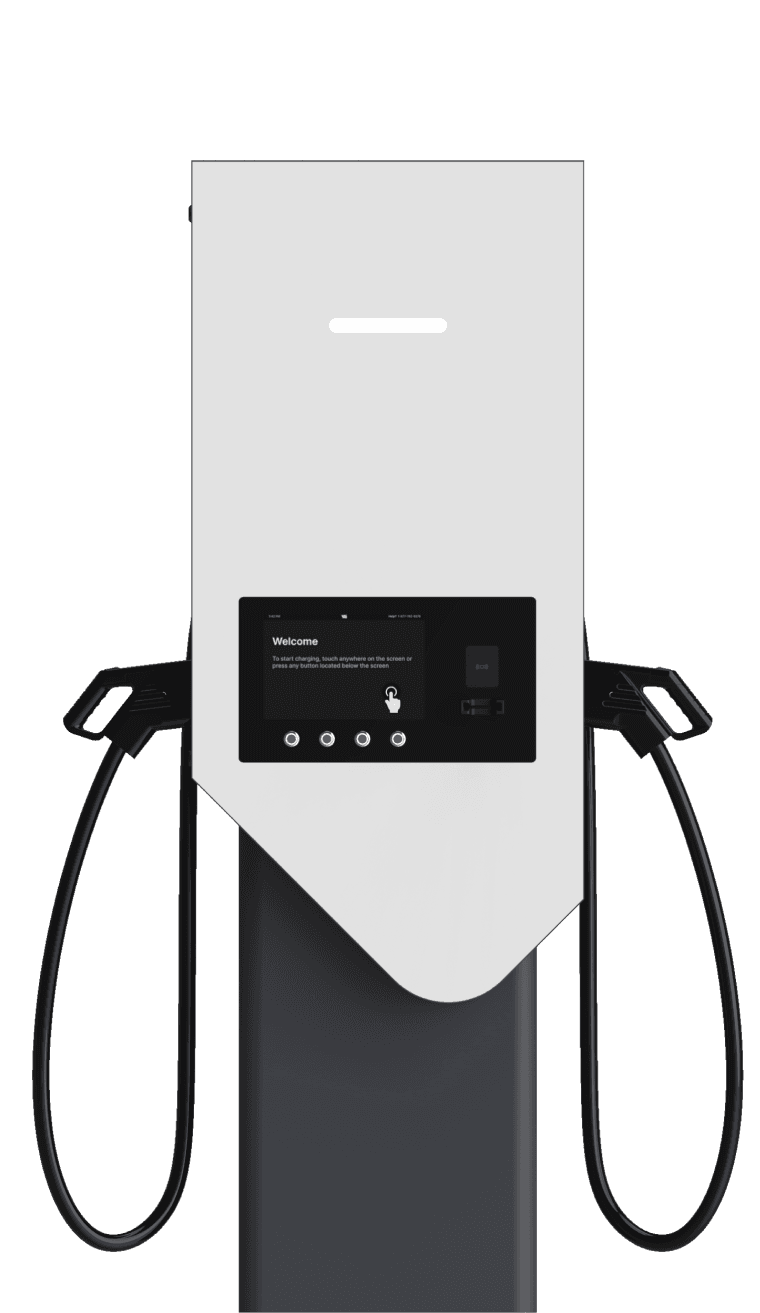

Installing advertising displays on Electric vehicle chargers opens up additional revenue streams. The 32−inch screen not only showcases impactful advertisements that can boost your business sales but also functions as an interactive kiosk, enabling direct orders. For those who prefer a simpler option, a cost-effective Version with a smaller 10.1−inch screen is also available, tailored to your needs.

display touch

10.1inch

viveEV 80kW EV Charger Dispenser

Significant others

10.1” Display (Press-button options)

Payment (Credit Card Reader)

OCPP 1.6 (2.0.1 for universal)

ISO 15118 (Plug and Charge Standards)

Custom Branding

CCS1 (Max 500A), NACS(Max 380A)

bg

viveEV design

A Stand type
with a thin design

Compact Design for Efficiency

Technical specifications

Electrical

AC Input Source

480 Vac ±10% (60 Hz)

AC Input Connection

3-phase (L1, L2, L3) + N + PE

AC Input Current

102 A

Input Power Rating

85 kVA

Output Power

80 kW

Output Voltage Range

CCS1: 150 - 1000 VDC
NACS: 150 - 500 VDC

Max. DC Output Current

160 A (1 ch) / 80 A (2 ch)

Current THD

<5% @ full power

Power Factor

≥0.99

Efficiency

>95%

Interface

Network Connection

10/100 Base-T Ethernet

Plug Type

CCS1, NACS

Payment Method

ISO14443, NFC, RFID, MiFare, ISO7810 / ISO7811 Tracks 1-3

Display

32” Advertising LCD Screen
10.1” LCD Screen (Optional Touch Screen)

Environment

Operating Temperature

-20°C to 50°C (Option: -35°C to 50°C) / -4°F to 122°F (Option: -31°F to 122°F)

Humidity

95% Non-Condensing

Enclosure Rating

IP54, NEMA 3R

Altitude

Up to 2000 m

General

Protection

Under Voltage Protection, Over Voltage Protection, Over Current Protection, Over Temperature Protection, etc.

Compliance and Safety

UL2202, UL2231-1, UL2231-2, ISO15118, IEC61851-1, IEC61000-6-3, DIN70121

Dimension (WxDxH)

Stand: 600 x 264 x 1900 mm / 1.96 x 0.86 x 6.23 ft
Wall: 600 x 264 x 1400 mm / 1.96 x 0.86 x 4.59 ft

Charge Cable Length

6 m (19.69 ft)
