viveEV 600kW EV Charger Dispenser

600kW Tron

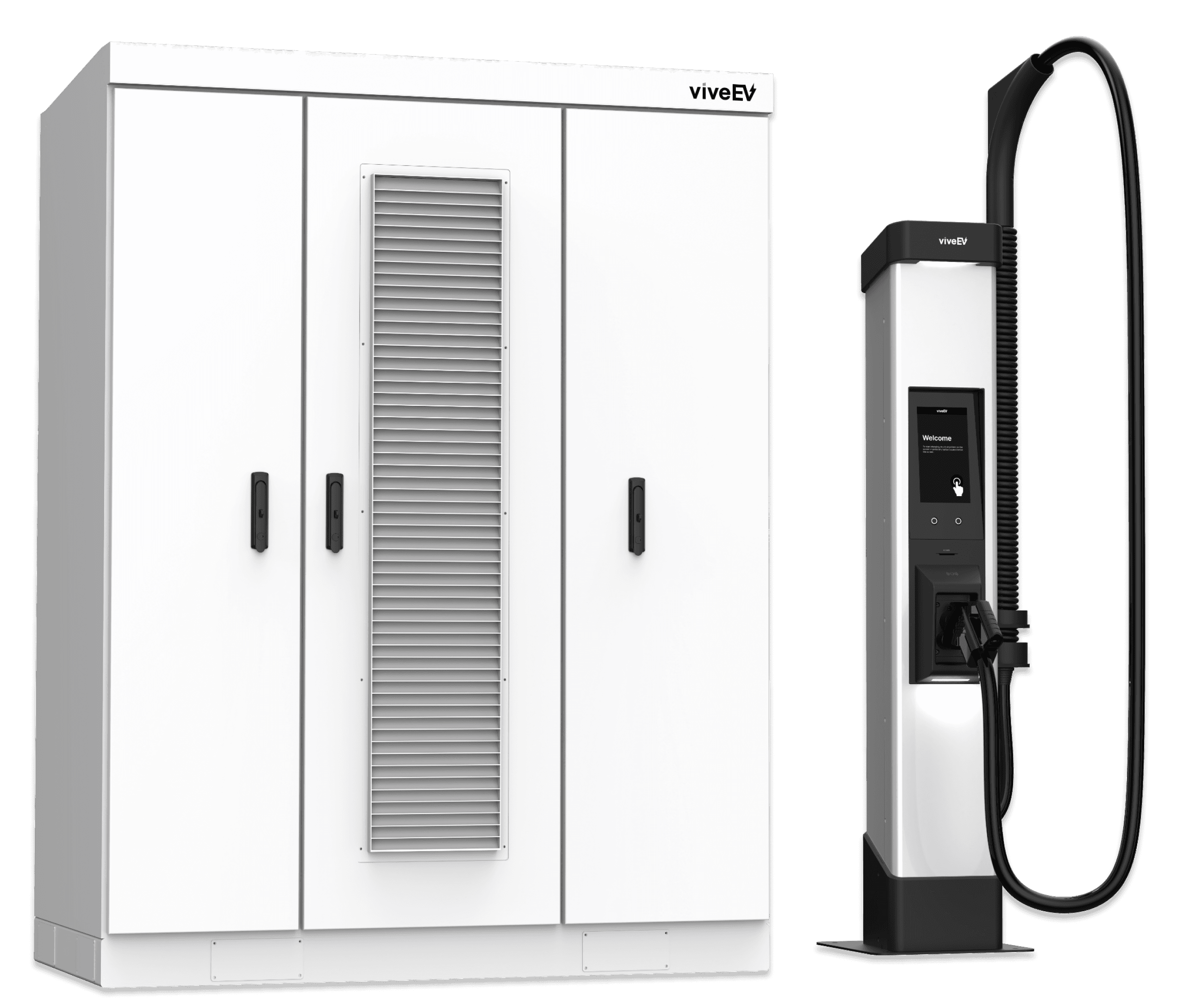

The compact viveEV 600kW dispenser and integrated cabinet provide rapid, high-efficiency EV charging. With advanced technology and a sleek design, it offers a faster, more space-efficient solution for modern charging needs.The compact viveEV 600kW dispenser and integrated cabinet provide rapid, high-efficiency EV charging. With advanced technology and a sleek design, it offers a faster, more space-efficient solution for modern charging needs.
Tron
viveEV 19.2kW EV Charger Dispenser
backgroundbackground

Ultra-Fast EV Charging

The viveEV 600kW DC Fast Charger offers ultra-fast charging with up to 600kW per dispenser and dynamic power sharing for up to four vehicles. Its compact design, occupying less than 1 square foot, integrates NACS or CCS1 ports, multiple payment options, and spring-engineered cable management for easy use. Powered by Qualcomm Snapdragon and Android OS, it ensures fast processing, seamless connectivity, and effortless updates, all without requiring liquid cooling for reliable, high-performance charging.

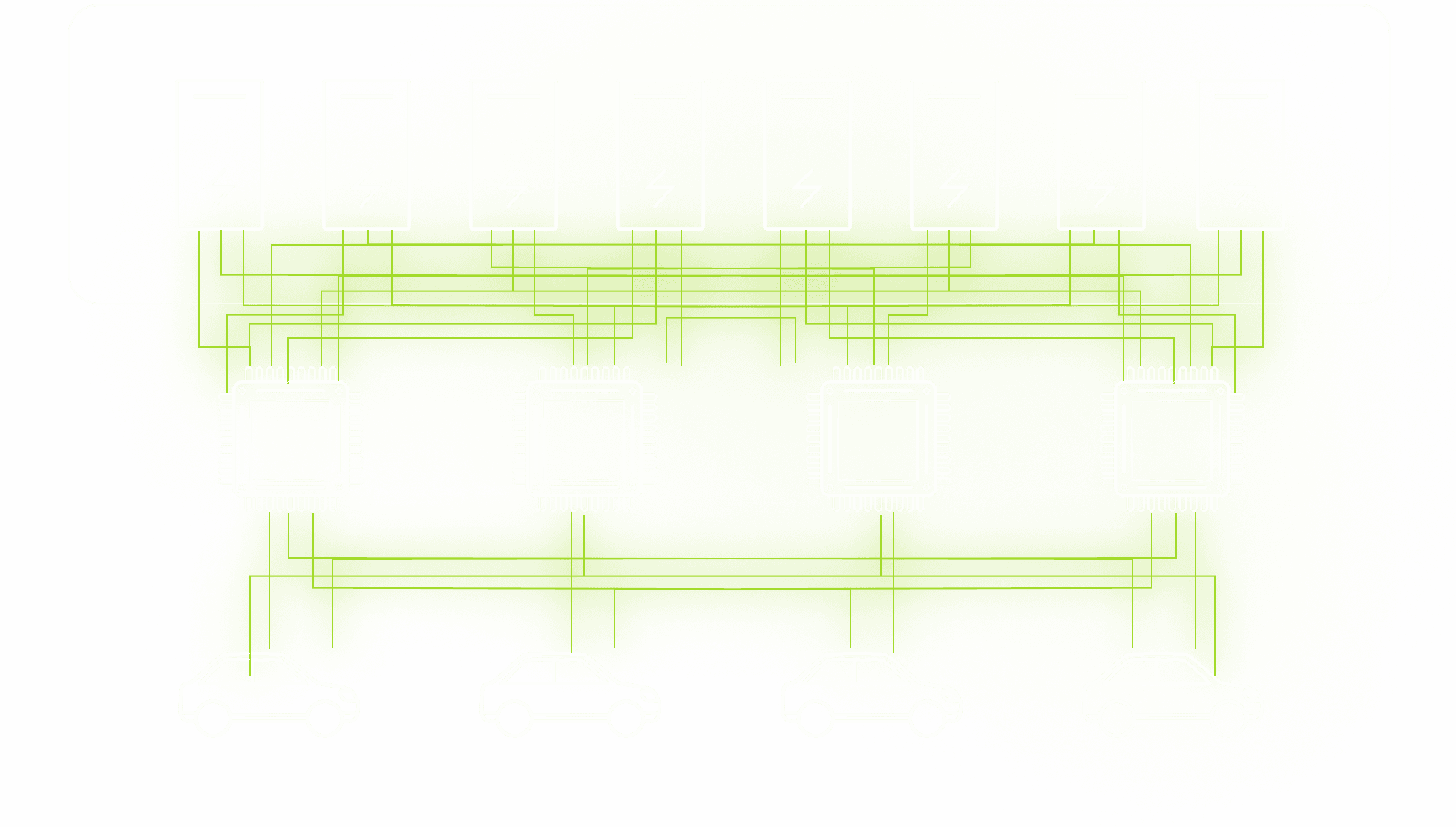

AI-Powered EV Chargers with Dynamic Power Sharing

viveEV 600kW EV Charger AI logic
viveEV brain
AI

technology

600 kW

Maximum

Independent connector use

Dynamic DC power sharing

AI-powered optimization

High-power charging

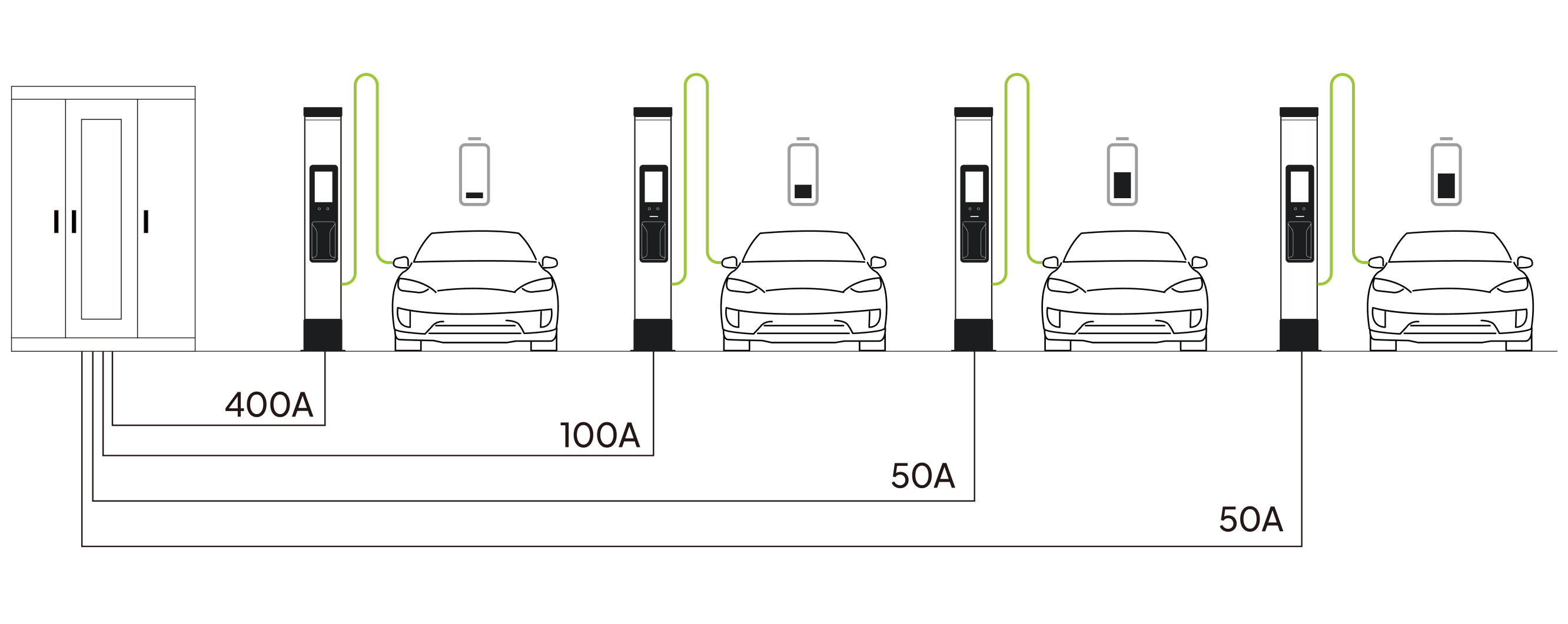

The 600kW Tron supports up to four dispensers connected to a power cabinet with an output of 600kW, enabling dynamic power sharing that intelligently distributes power based on real-time charging demand. AI technology enhances fault prediction and lifespan estimation, optimizing power sharing based on charging patterns and usage. Each dispenser can deliver a maximum output of 600A (nominal 400A) without requiring liquid cooling, ensuring consistent and reliable performance under various conditions.

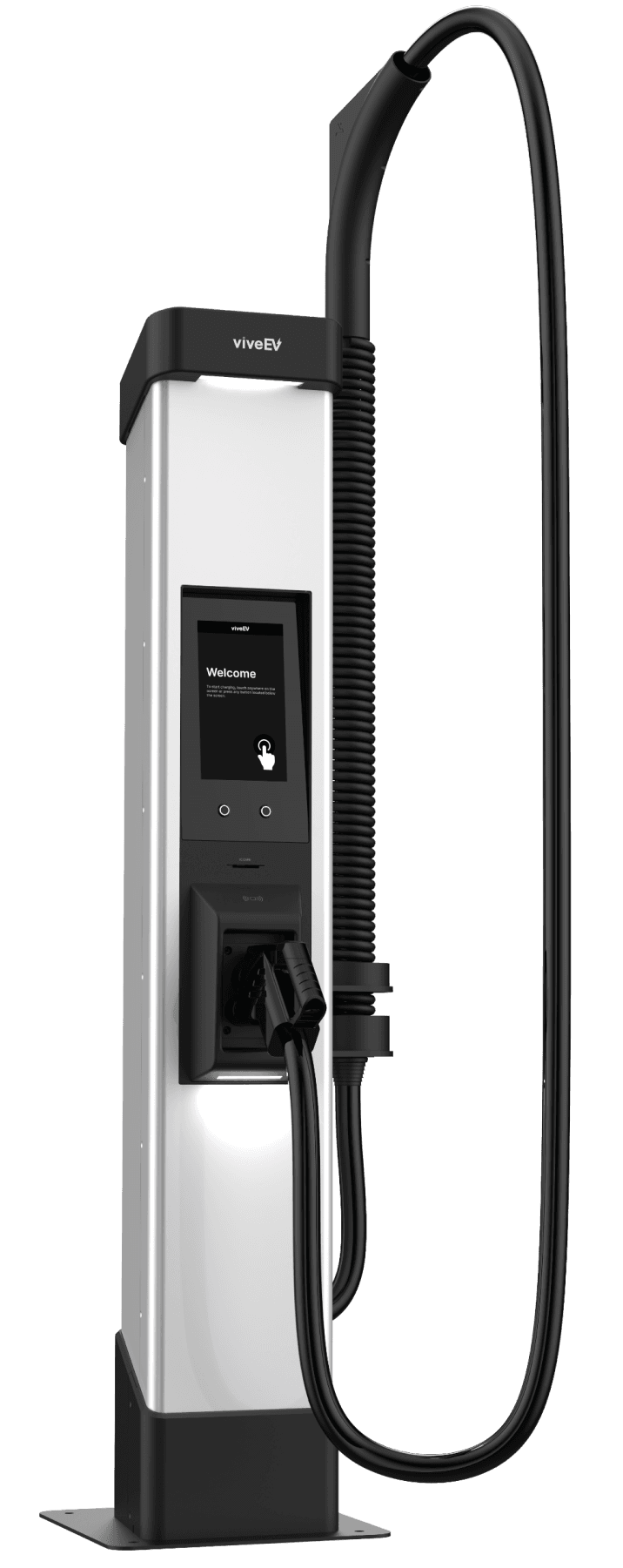

viveEV 600kW ev charger side

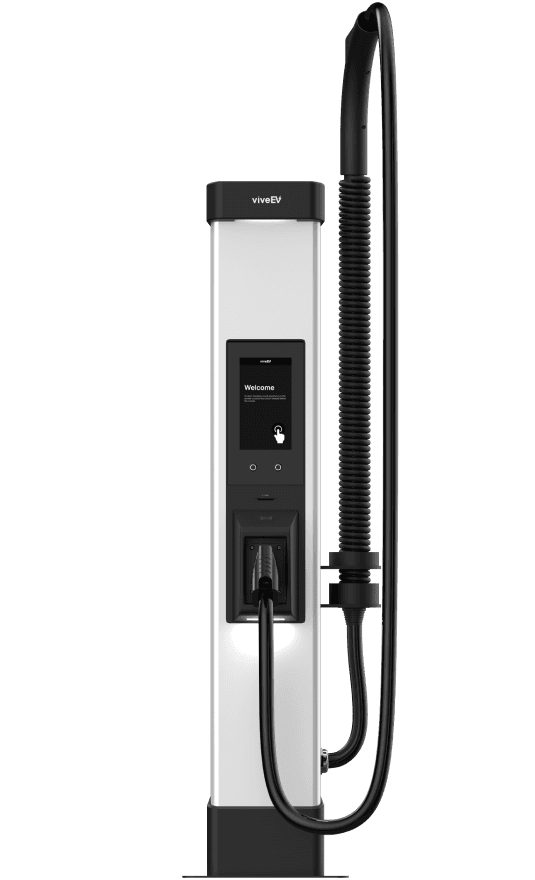

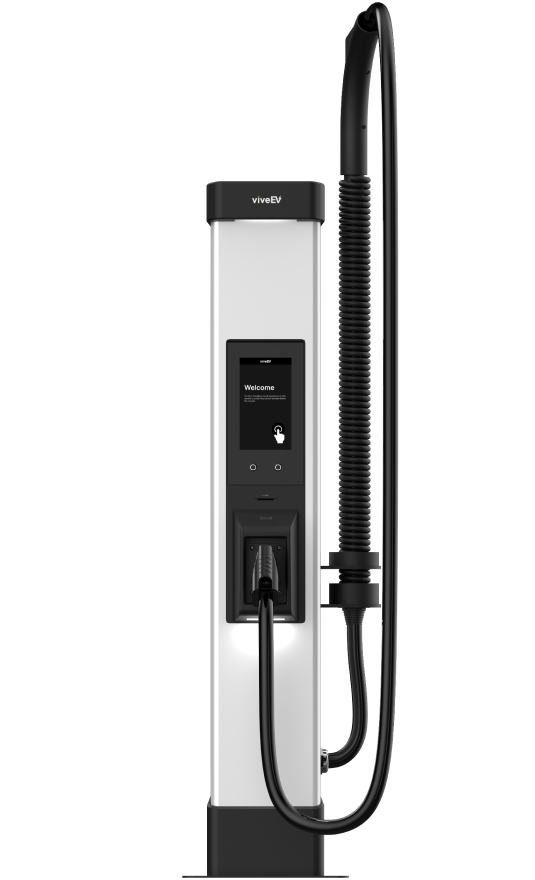

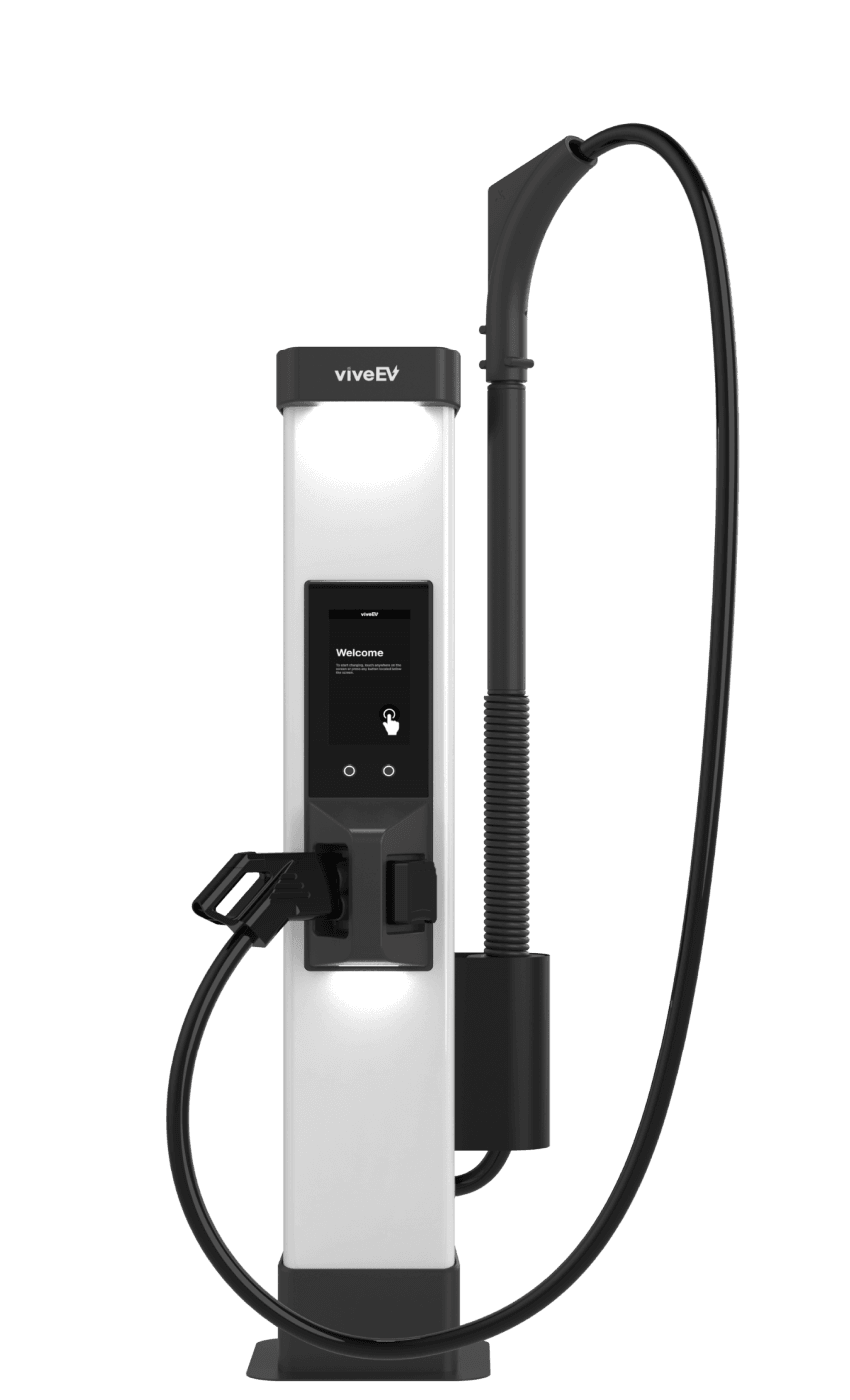

viveEV 600kW ev charger front

10.24

inch

Space-Saving Small footprint

The viveEV 600kW DC chargers pack incredible power into a compact design. The Tron ultra-fast EV charger measures just 11.02 x 10.24 inches and occupies only 112.84 square inches of space. Despite its small size, the Tron delivers top-tier performance and an intuitive user experience, setting a new benchmark for efficiency and convenience.

backgroundbackground

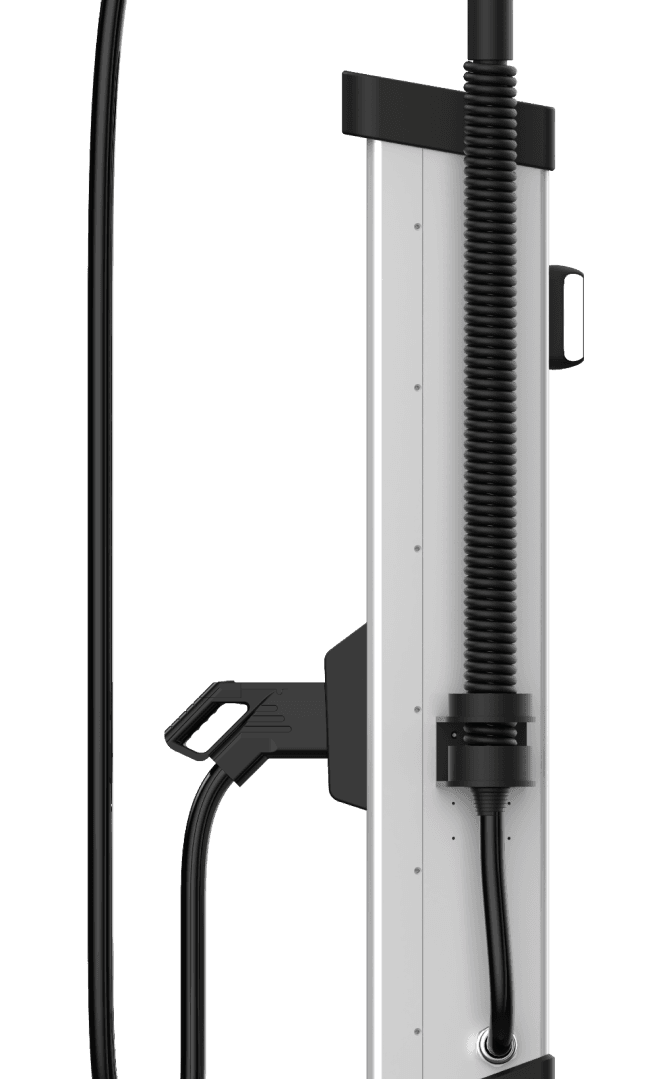

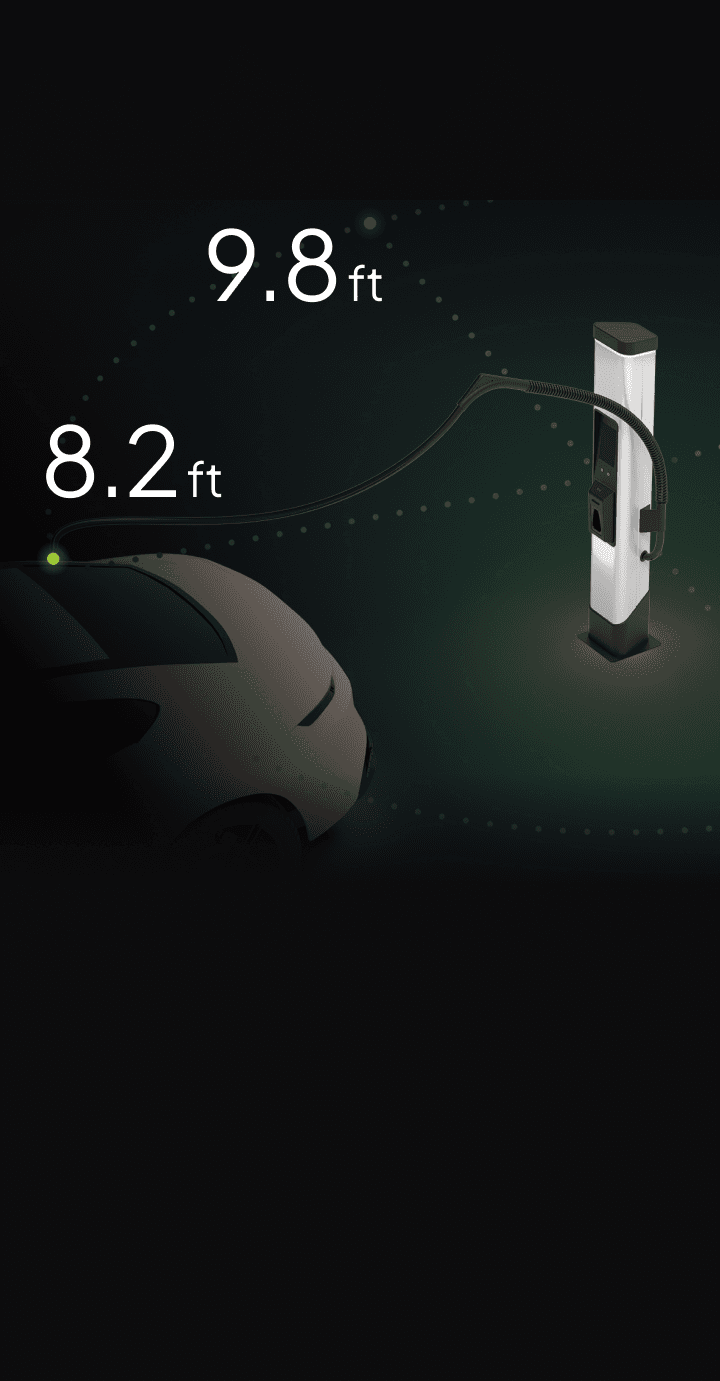

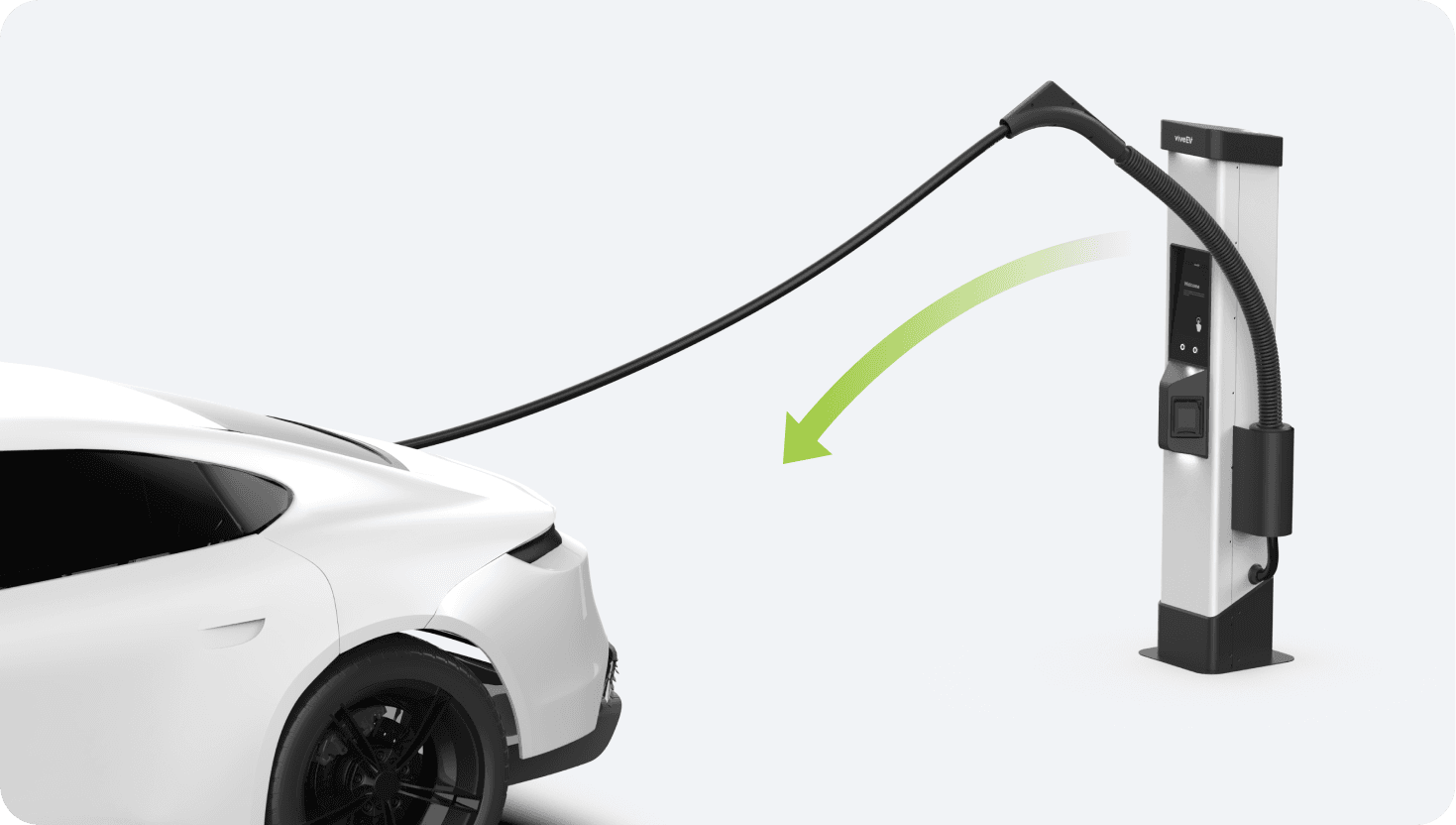

Spring-Engineered Cable Management System

Inspired by a boomerang design, the spring-engineered cable minimizes weight, making it easier to handle while extending its reach to the EV.

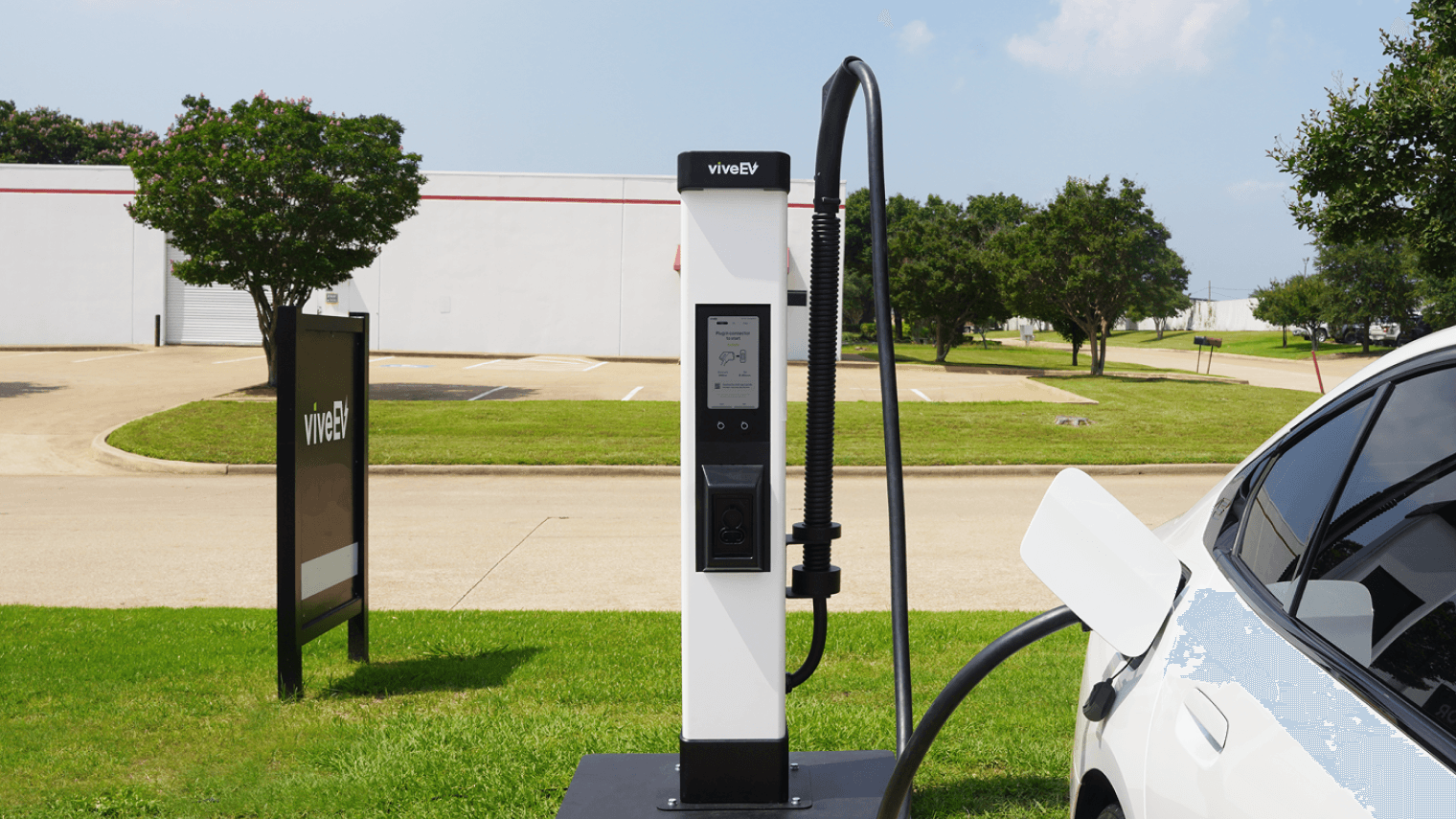

Durability and Reliability

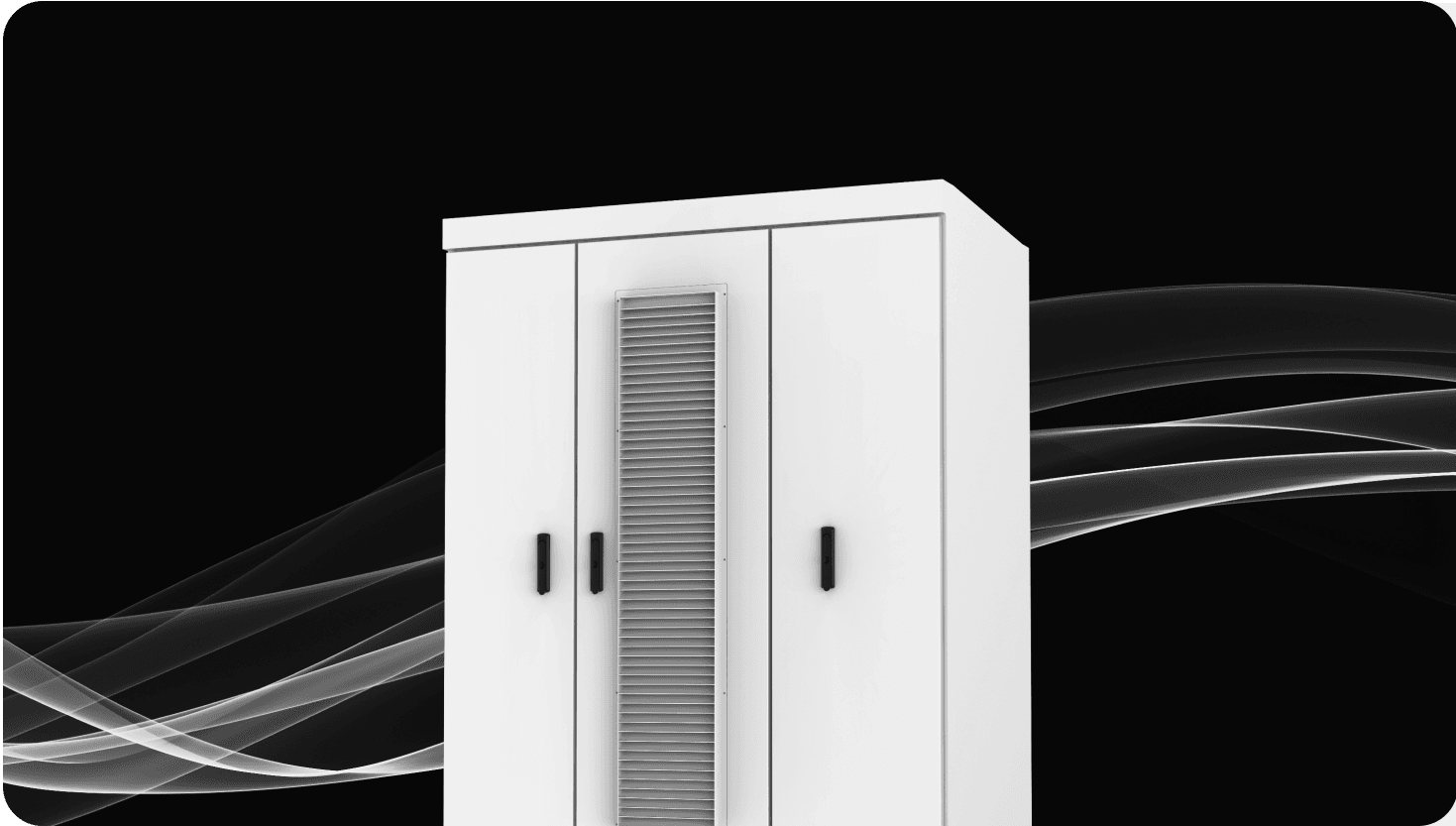

The viveEV 600kW Tron charging system is designed for maximum uptime and durability, with a robust design that ensures continuous, reliable performance in any environment. It features smart design elements for optimal heat management and a highly efficient airflow system, keeping both the dispenser and power cabinet operating smoothly. The modular design simplifies maintenance, allowing for quick and easy part replacements without disruption. Everything in the design of the Tron 600kW DC fast charger ensures your charging infrastructure remains operational with minimal downtime, delivering a hassle-free experience for both operators and users.

95

%

Efficiency
viveEV 600kW module
viveEV 600kW module

Powered by Android OS

The viveEV's chargers are powered by an upgraded Android OS interface, delivering a familiar, intuitive interface with seamless over-the-air updates, simplifying maintenance and enhancing user experience.

viveEV 600kW module

Built with Qualcomm Snapdragon

The viveEV's chargers are powered by Qualcomm Snapdragon with integrated PLC and LTE modems, the system ensures fast processing, seamless connectivity, and easy maintenance.

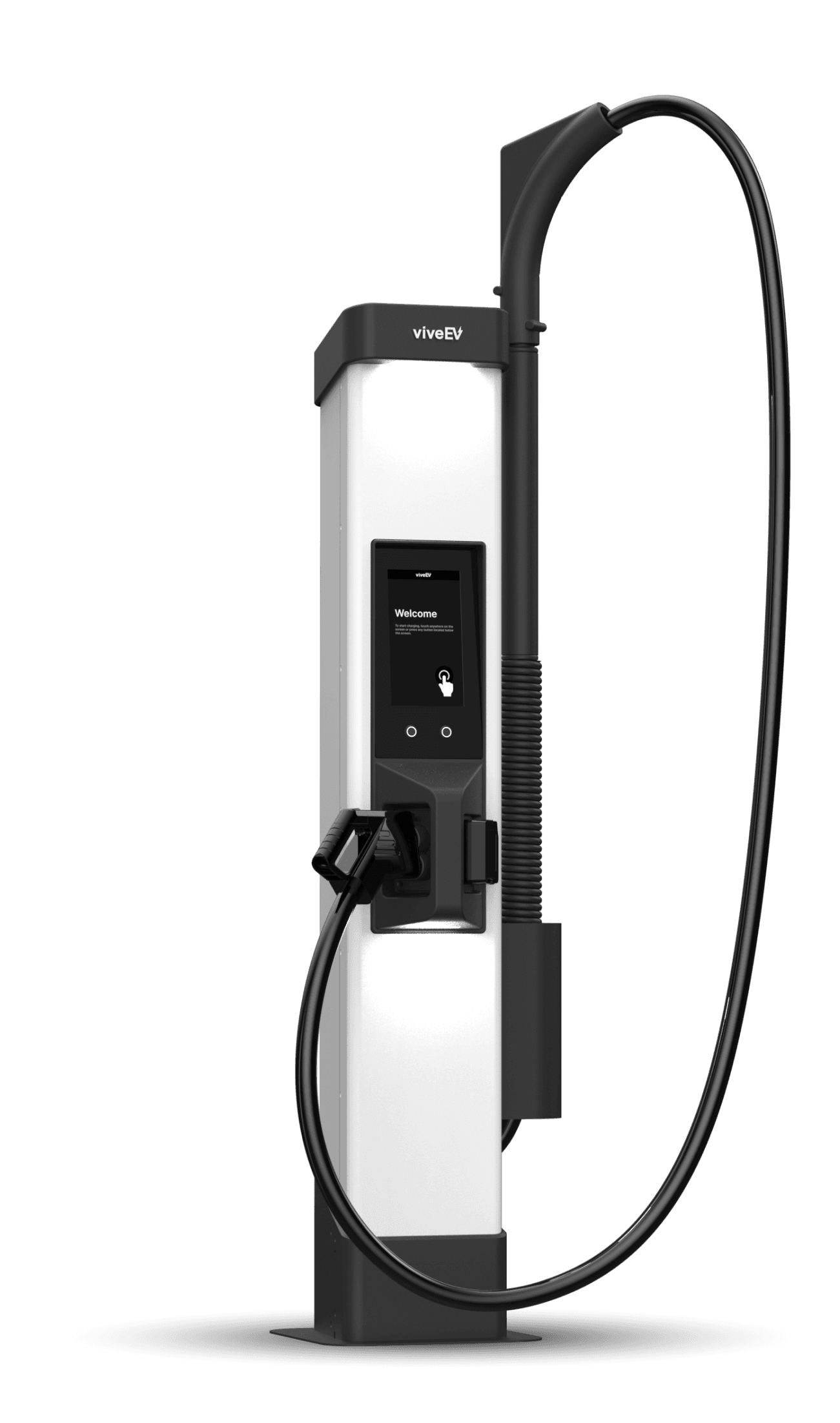

viveEV 600kW EV Charger Dispenser

Key Features

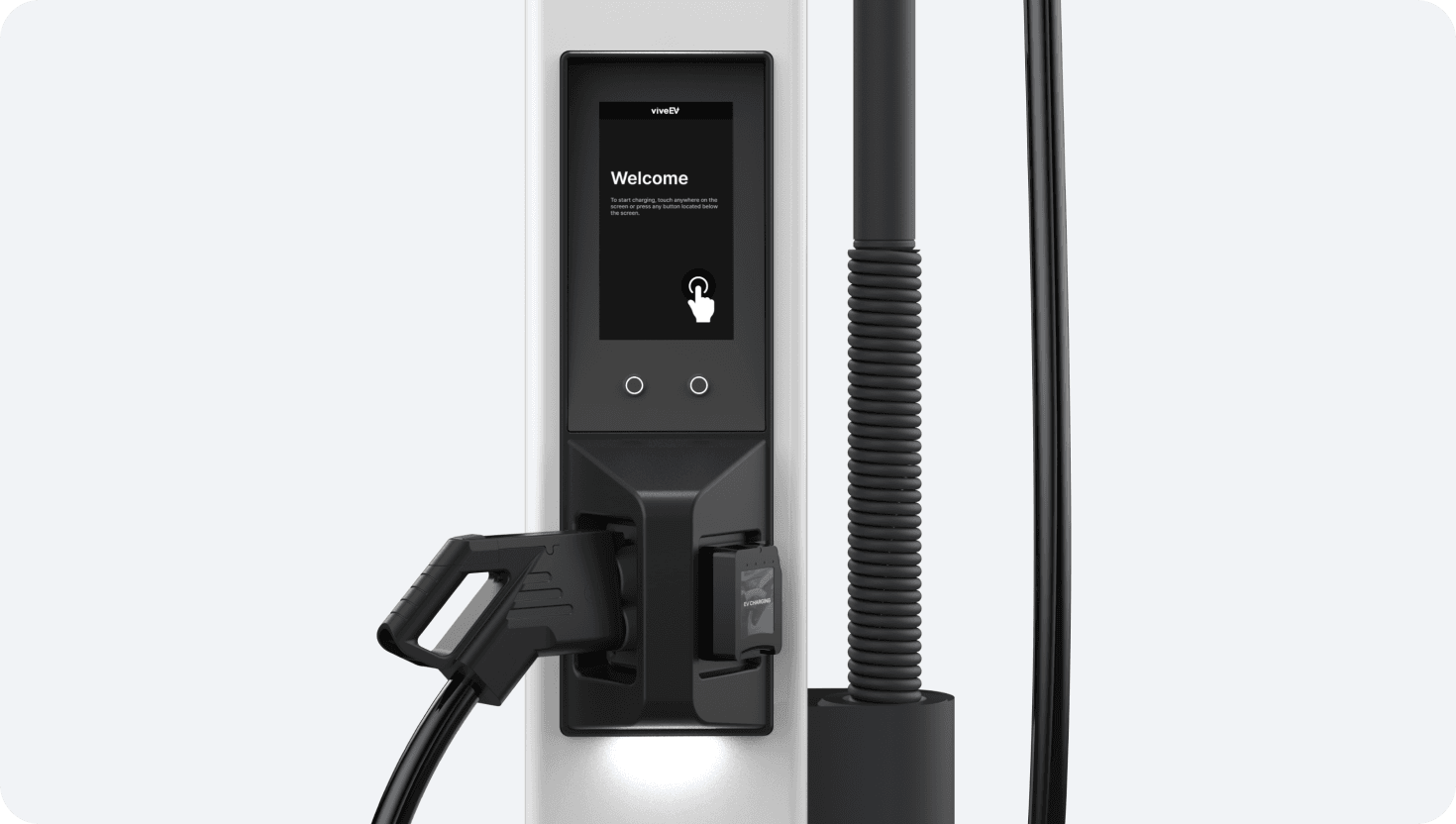

10.1" LCD Touch Screen with Tempered Glass

Payment (NFC, RFID, MiFare, Credit Card Reader)

OCPP 1.6 (2.0.1 for universal)

ISO 15118 (Plug and Charge Standards)

CCS1 & NACS

bgbg

viveEV design

A Modern Space and
Saving Design

based on box-type design

Technical specifications

Power Cabinet

AC Input Source

480Δ/277Vac ±10% (60Hz)

AC Input Connection

3-phase (L1, L2, L3) + PE

AC Input Current

760 A

Input Power Rating

632 kVA

Output Power

600kW (Included Feature: Dynamic Power Sharing)

Output Voltage Range

DC 200 - 1000 VDC

DC Output Current

Max 600A (Nominal 400A)

Current THD

<5% @ full power

Power Factor

≥0.99

Efficiency

>95%

Dimension (WxDxH)

1454 x 800 x 1935 mm (4.77 x 2.62 x 6.41 ft)

Weight

1,050 kg / 2,315 lbs

Dispenser

Dispenser Capacity

Max 600A (Nominal 400A)

Output Voltage Range

DC 200 - 1000VDC

Network Connection

10/100 Base-T Ethernet

Plug Type

CCS1 / NACS

Payment Method

NFC, RFID, MiFare, Credit Card Reader, Tap-to-Pay Credit Cards, Apple Pay, Google Pay, ISO14443, ISO7810 / ISO7811 Tracks 1-3

Display

7" LCD Screen (Optional Touch Screen)

Protection

Under Voltage, Over Voltage, Over Current, Over Temperature Protection, etc

Charge Cable Length

3 m (9.84 ft)

Dimension (WxDxH)

280 x 260 x 1800 mm (11.02 x 10.24 x 70.87 in.)

Weight

95 kg / 209 lbs

General

Compliance and Safety

UL2202, UL2231-1, UL2231-2, ISO15118, IEC61851-1, IEC61000-6-3, DIN70121

Operating Temperature

-25°C to 40°C (Option: -35°C to 40°C) / -31°F to 104°F (Option: -31°F to 104°F)

Humidity

95% Non-Condensing

Enclosure Rating

IP54, NEMA 3R
