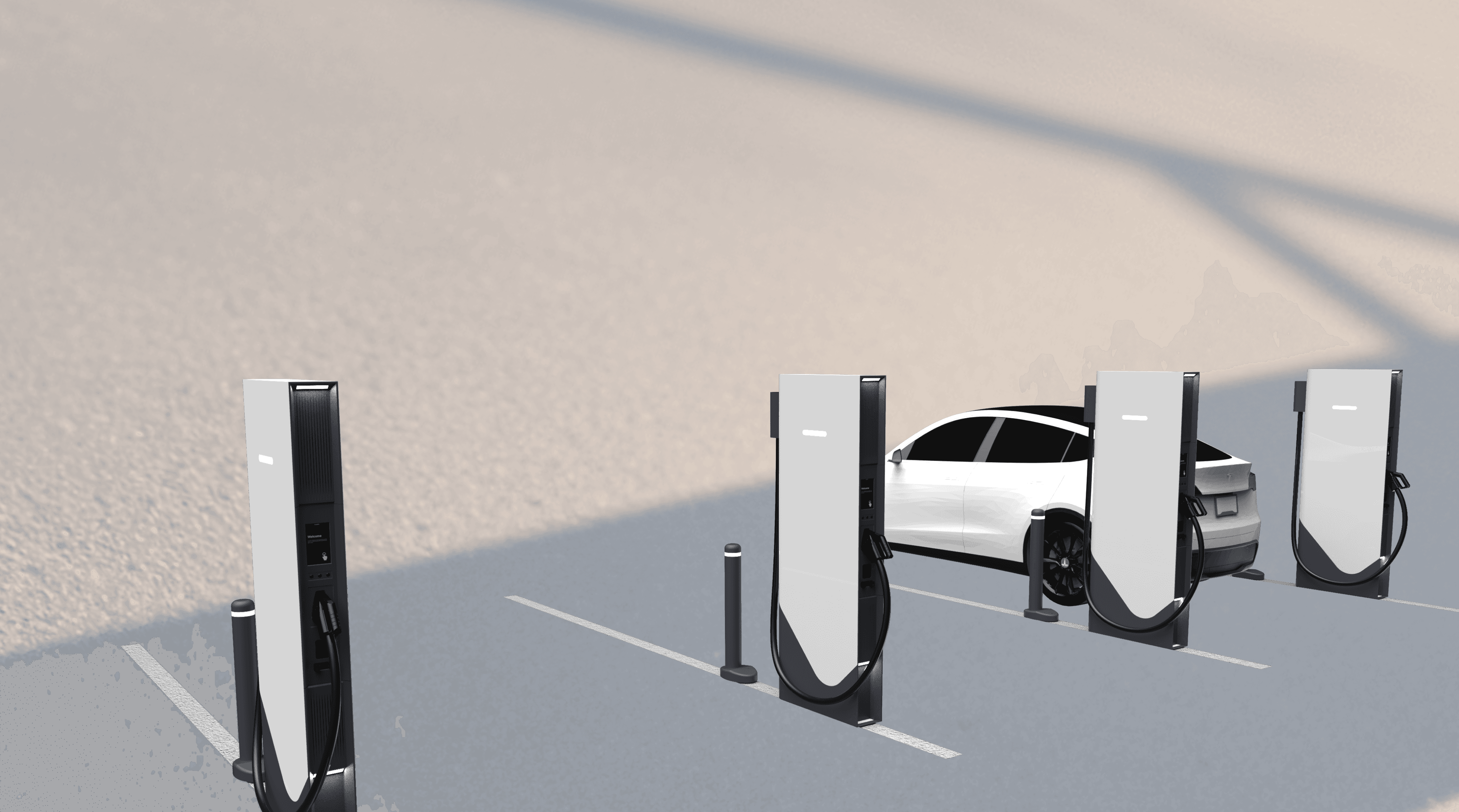

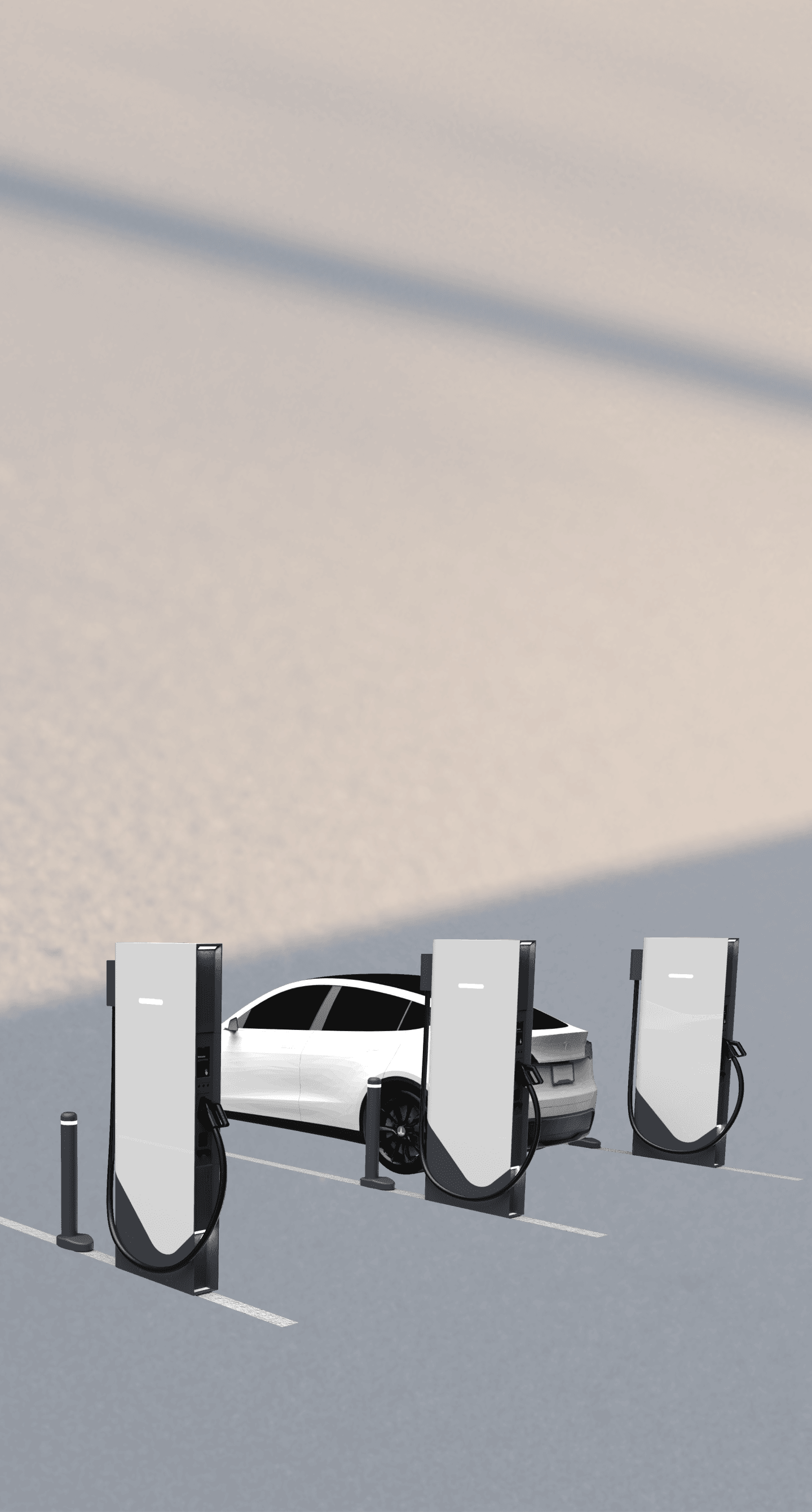

viveEV 600kW EV Charger Dispenser

600kW Ultra Slim

We are committed in the development of highly efficient and space-saving solutions that substantially reduces costs. This is achieved through the meticulous design and modular construction, ensuring optimal heat dissipation.

We are committed in the development of highly efficient and space-saving solutions that substantially reduces costs. This is achieved through the meticulous design and modular construction, ensuring optimal heat dissipation.

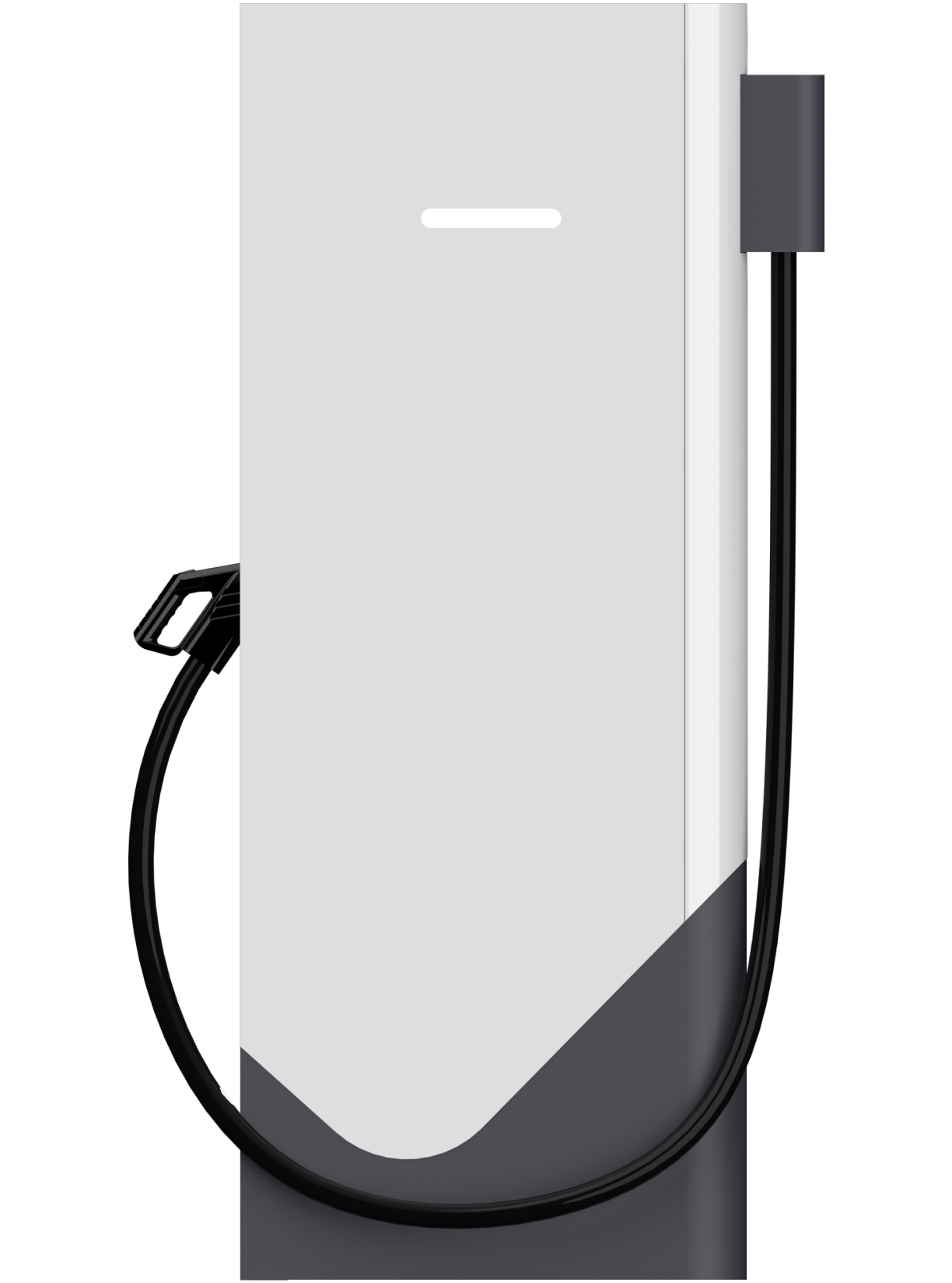

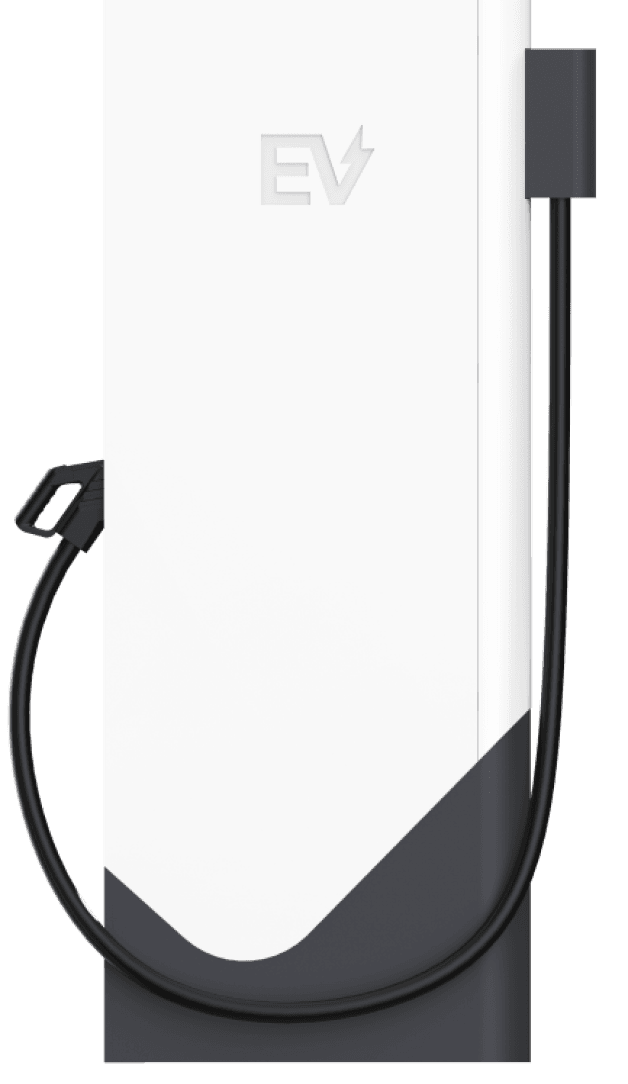

viveEV 600kW EV Charger Dispenser

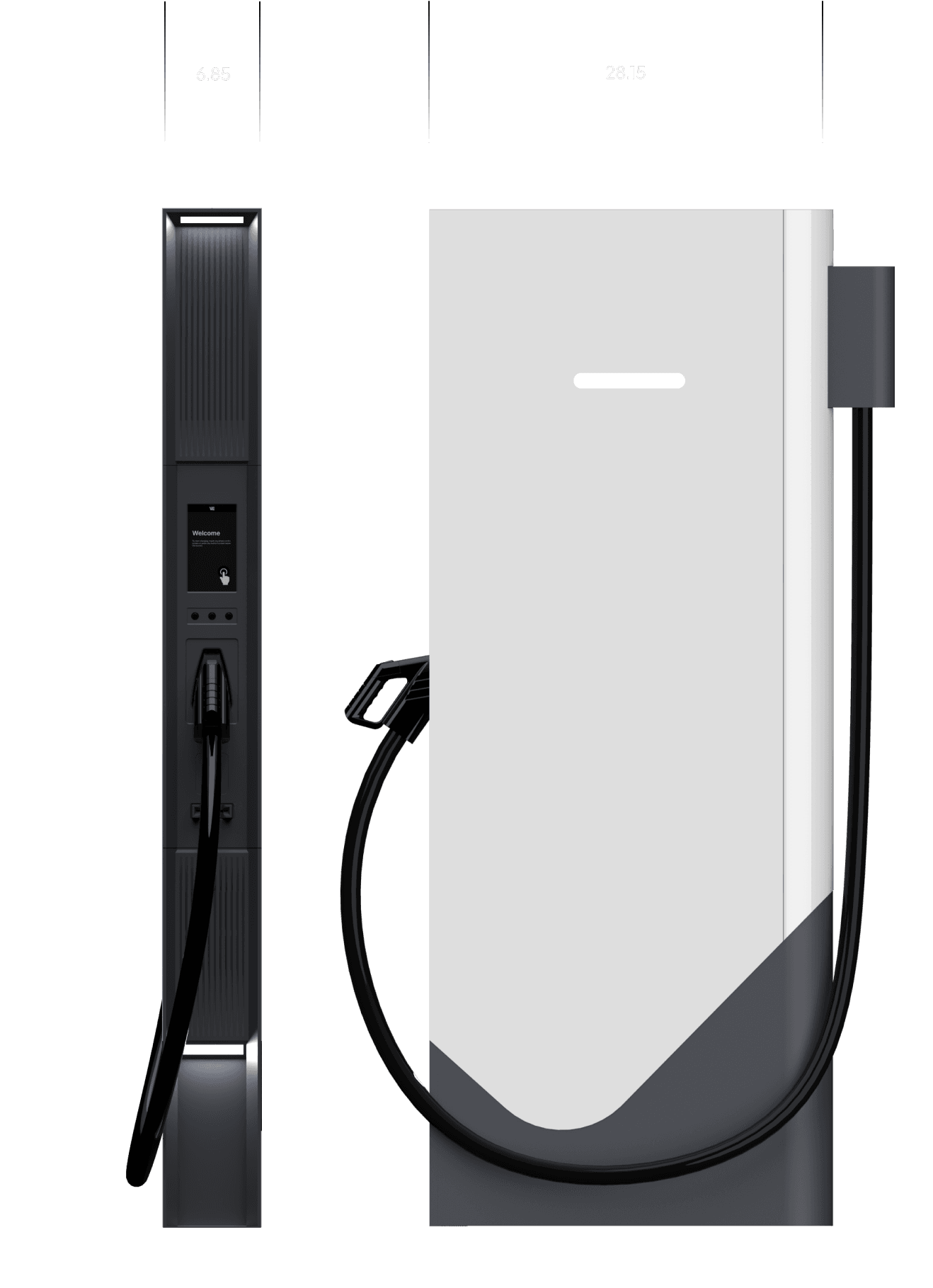

viveEV 600kW EV Charger Dispenser Footprint

6.85

inch

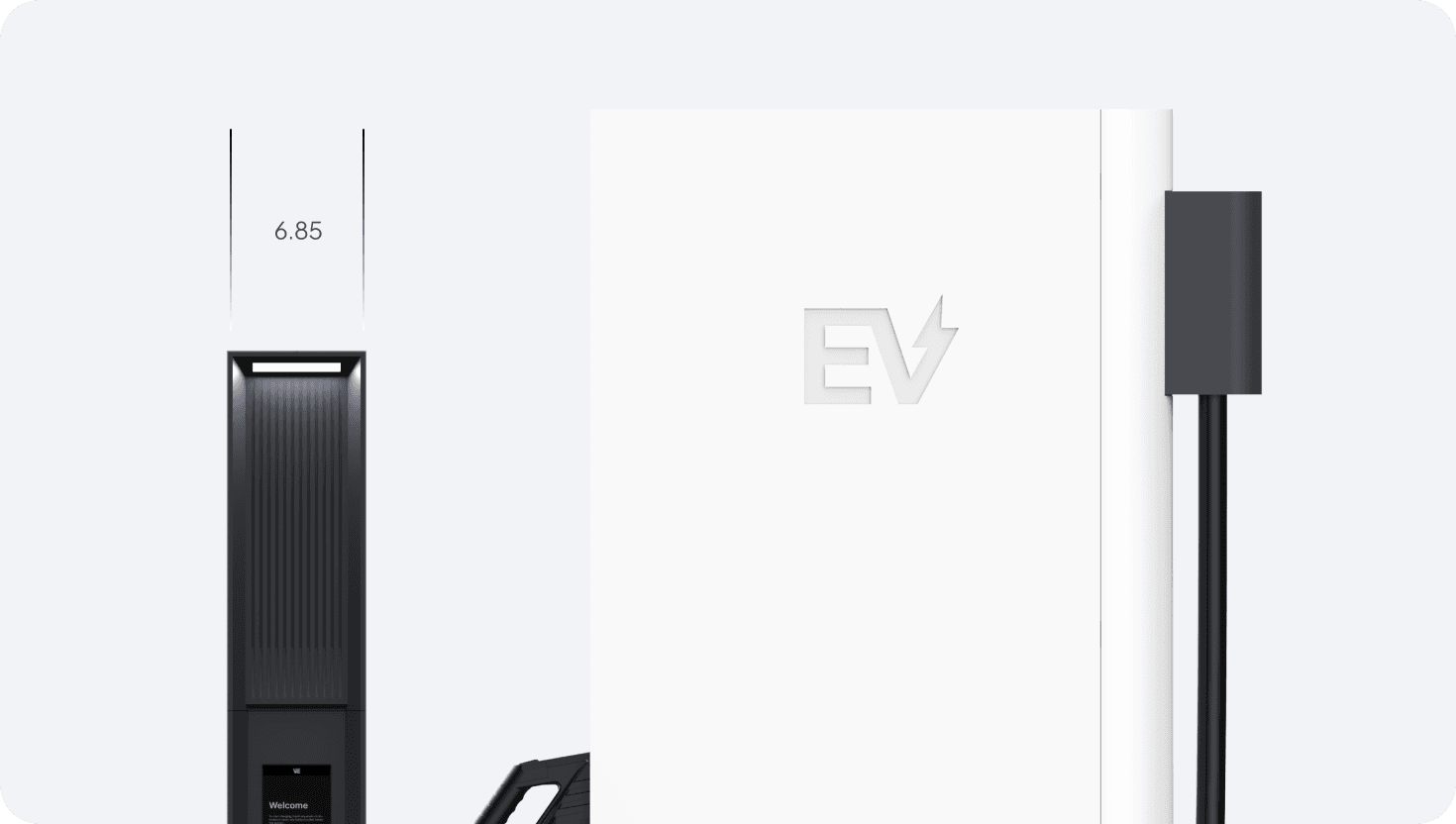

Space-Saving and Small footprint

With a compact footprint of just 28.15 by 6.85 inches (71.5 by 17.4cm), occupying only 194.93 square inches (1,257 square centimeters) of floor space, our chargers deliver impressive power in a sleek and efficient package. Despite their small size, they provide the ultimate charging performance. Inspired by the intuitive and slim design of modern smartphones, our chargers embody a perfect blend of form and function.

viveEV 600kW EV charger smart split systemviveEV 600kW EV charger smart split system

Smart Split System at a Glance

Our charging system features ultra-high current charging capability and can power both 200V and 1000V vehicles at maximum efficiency. With a maximum output of 600A, it can continuously charge 1000V vehicles at up to 600 kW from a single power cabinet. Additionally, it delivers a maximum output of 600A (nominal 400A) output without the need for liquid cooling, providing reliable performance under various conditions.

95% efficiency

viveEV 600kW ev charger airflowviveEV 600kW ev charger airflow

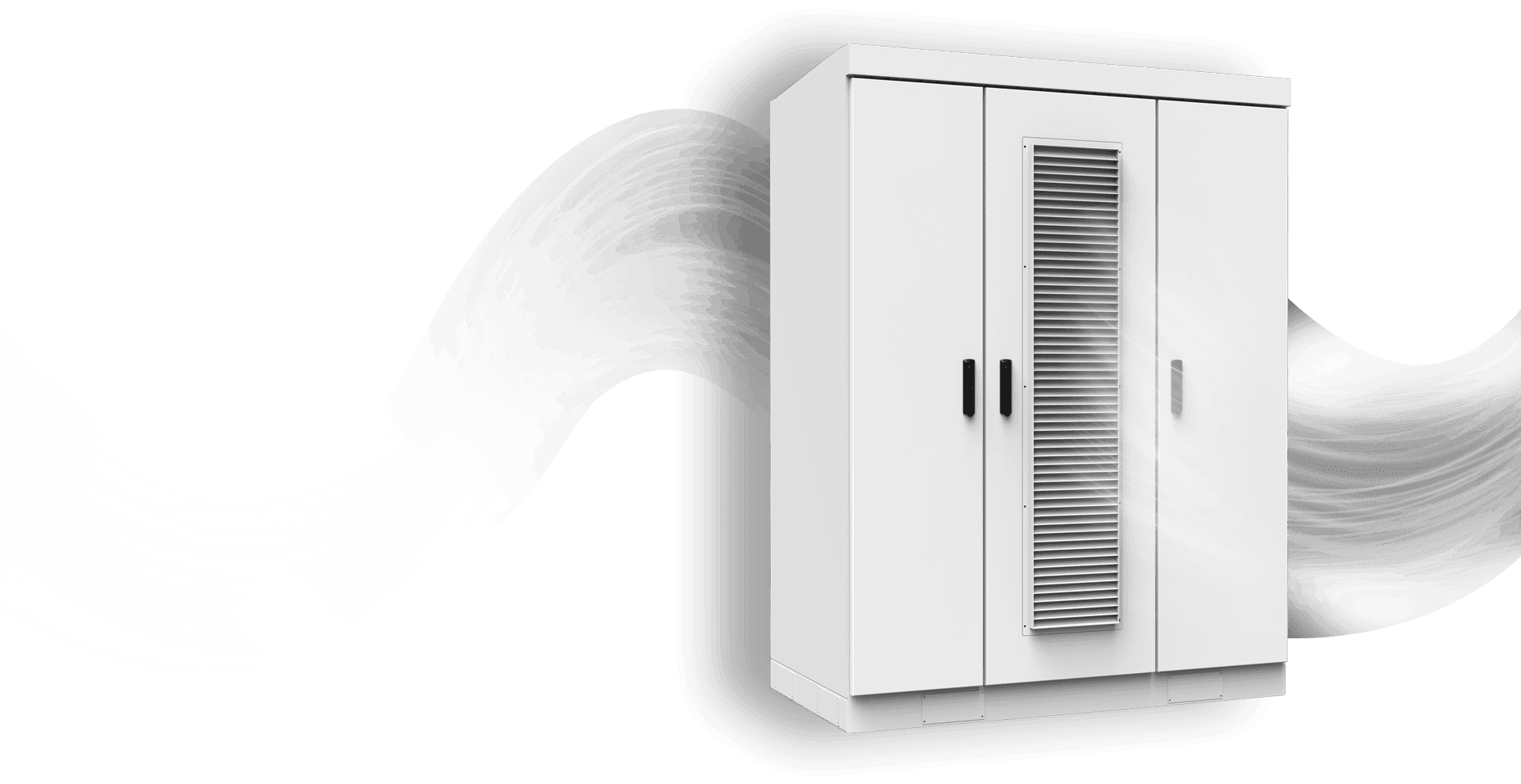

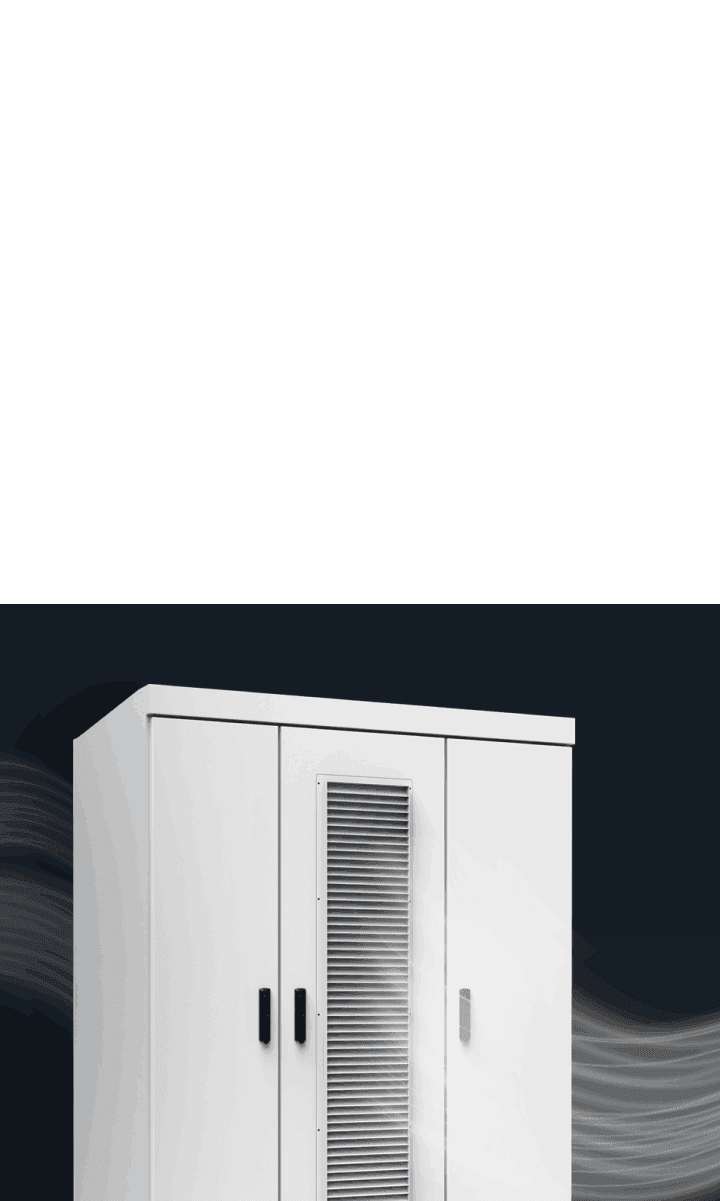

Excellent airflow and powerful

The modular design makes servicing straightforward, allowing easy replacement of components. It also features an efficient airflow system for effective heat dissipation, ensuring reliable performance in various conditions.

600kW

board

Android OS for Mobile-Friendly EV Chargers

We've upgraded our electric vehicle chargers to feature an Android OS interface, ensuring they are mobile-friendly and intuitive for users. This enhancement offers a strong selling point for enhanced usability and convenience.

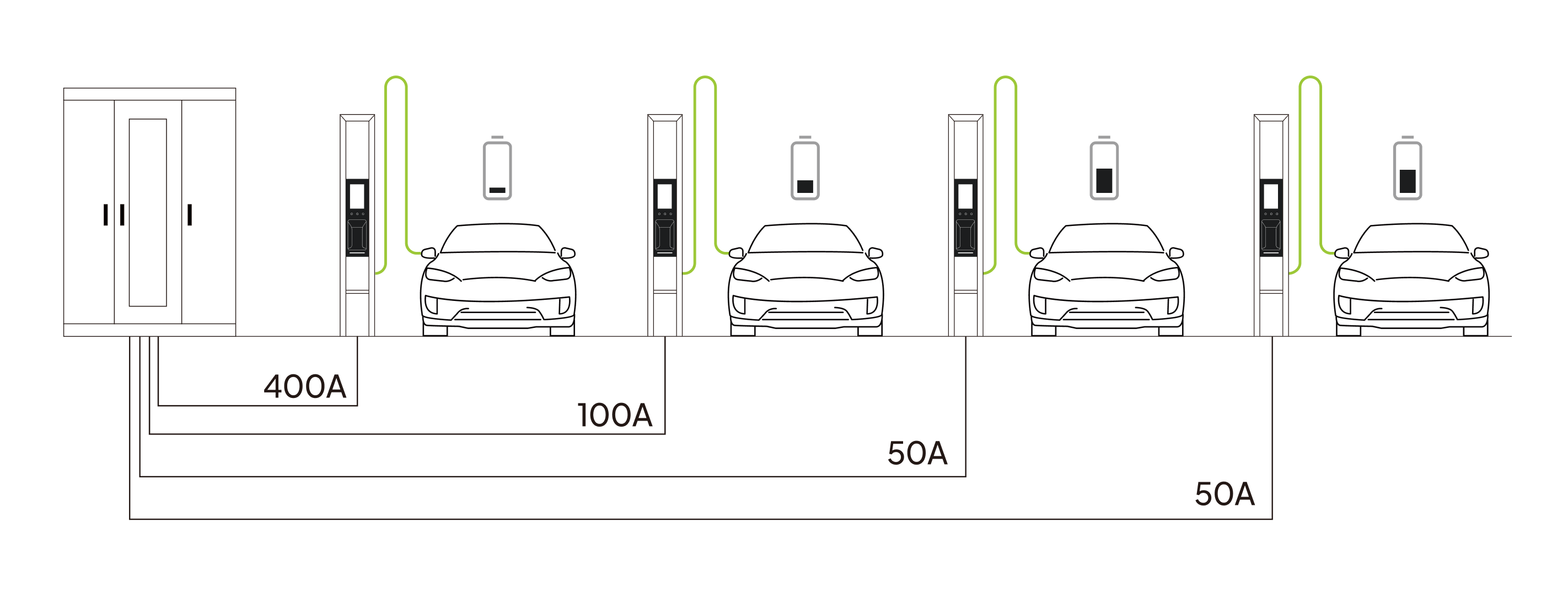

AI-Enhanced EV Chargers with Dynamic Power Sharing

viveEV 600kW EV Charger AI logic
viveEV brain
AI

technology

80 kW

Minimum

600 kW

Maximum

Independent connector use

Dynamic DC power sharing

AI-powered optimization

High-power charging

Our electric vehicle chargers allow independent use of each connector regardless of the other three, with dynamic DC power sharing to distribute total power among connectors. AI technology enhances fault prediction and lifespan estimation, optimizing power sharing based on charging patterns and usage. Each connector supports up to 300kW, dynamically adjusting maximum power based on simultaneous use and EV power requests.

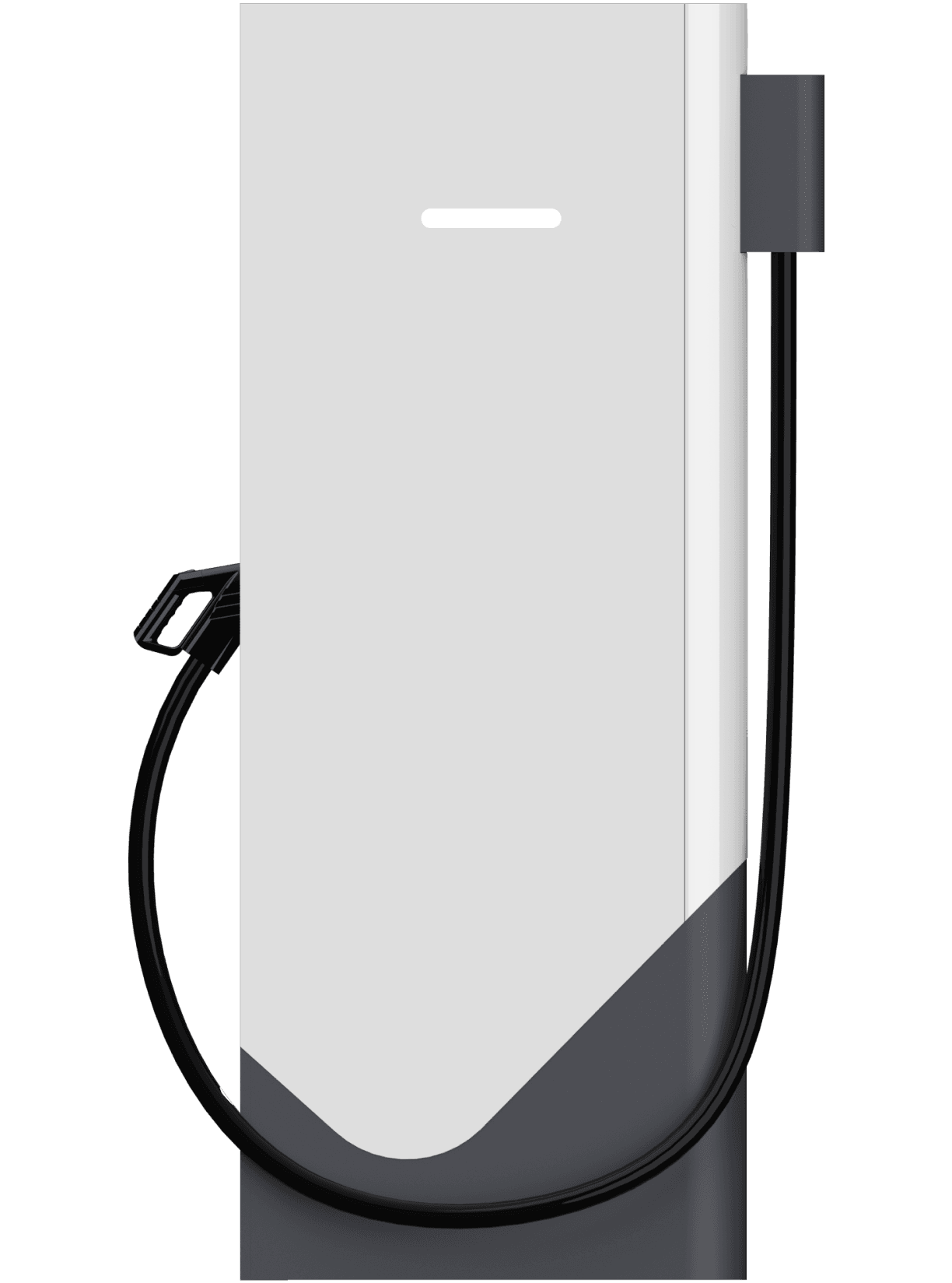

viveEV 600kW EV Charger Dispenser

Significant others

7” Display (Press-button options)

Payment (Credit Card Reader)

OCPP 1.6 (2.0.1 for universal)

ISO 15118 (Plug and Charge Standards)

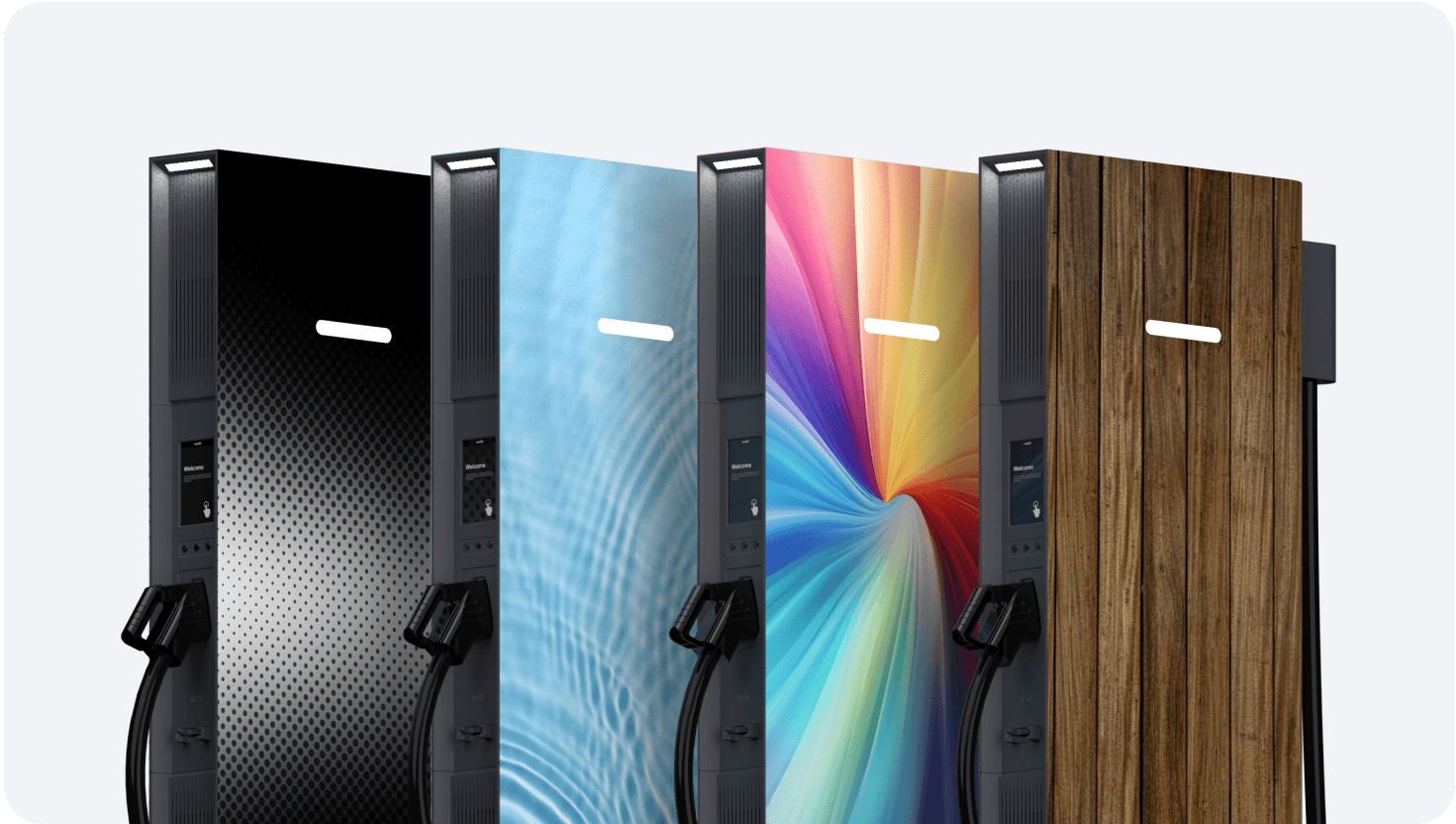

Custom Branding

CCS1 (Max 600A), NACS(Max 380A)

bg

viveEV design

A simple design and
space-saving

based on box-type design

Technical specifications

Power Cabinet

AC Input Source

480Δ/277Vac ±10% (60Hz)

AC Input Connection

3-phase (L1, L2, L3) + PE

AC Input Current

760 A

Input Power Rating

632 kVA

Output Power

600kW (Included Feature: Dynamic Power Sharing)

Output Voltage Range

DC 200 - 1000 VDC

DC Output Current

Max 600A (Nominal 400A)

Current THD

<5% @ full power

Power Factor

≥0.99

Efficiency

>95%

Dimension (WxDxH)

1454 x 800 x 1935 mm (4.77 x 2.62 x 6.41 ft)

Weight

1,050 kg / 2,315 lbs

Dispenser

Dispenser Capacity

Max 600A (Nominal 400A)

Output Voltage Range

DC 200 - 1000VDC

Network Connection

10/100 Base-T Ethernet

Plug Type

CCS1 / NACS

Payment Method

ISO14443, NFC, RFID, MiFare, ISO7810/7811 Tracks 1-3

Display

7" LCD Screen (Optional Touch Screen)

Protection

Under Voltage, Over Voltage, Over Current, Over Temperature Protection, etc

Charge Cable Length

3 m (9.84 ft)

Dimension (WxDxH)

756 x 176 x 1800 mm / 2.48 x 0.58 x 5.90 ft

Weight

95 kg / 209 lbs

General

Compliance and Safety

UL2202, UL2231-1, UL2231-2, ISO15118, IEC61851-1, IEC61000-6-3, DIN70121

Operating Temperature

-25°C to 40°C (Option: -35°C to 40°C) / -31°F to 104°F (Option: -31°F to 104°F)

Humidity

95% Non-Condensing

Enclosure Rating

IP54, NEMA 3R
