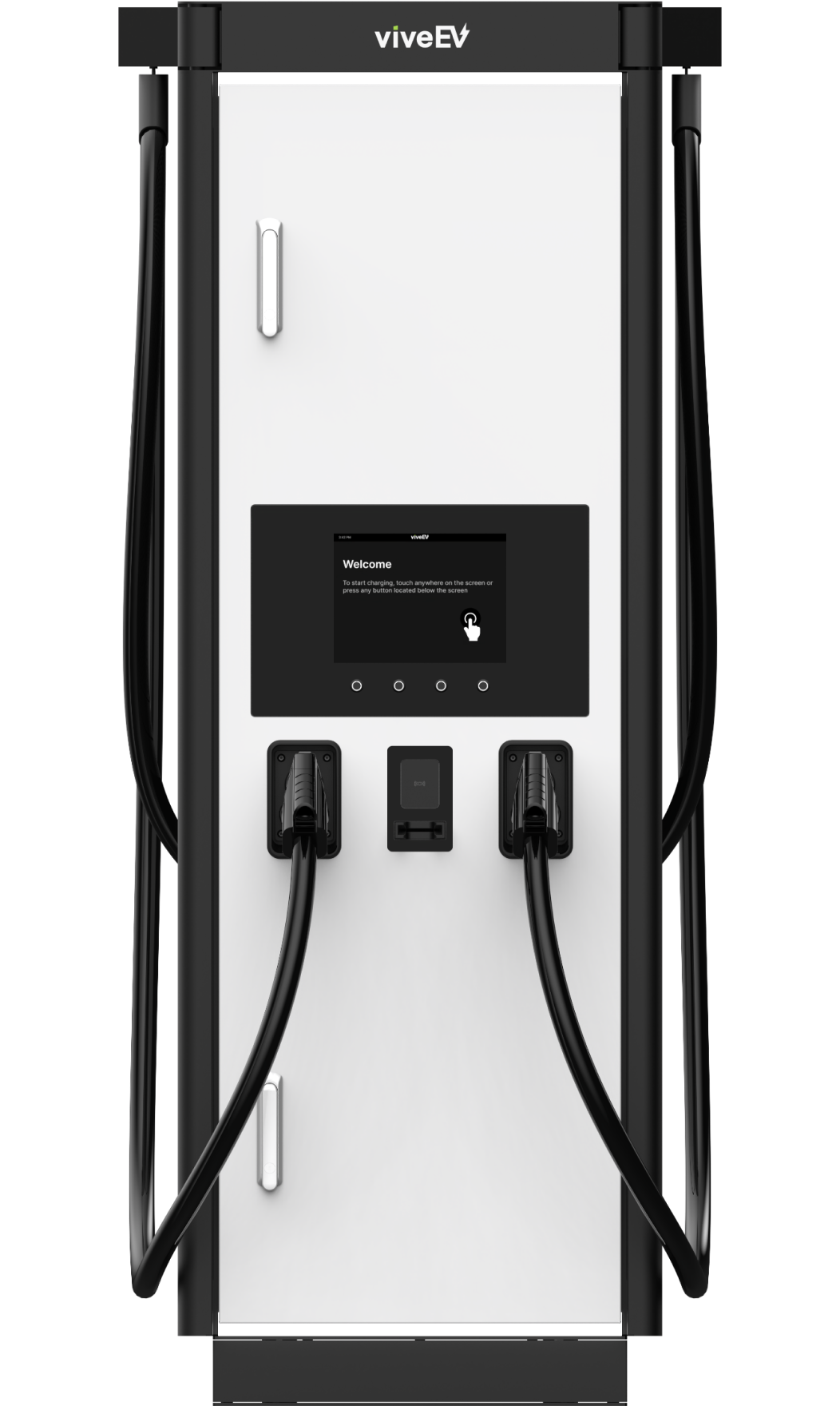

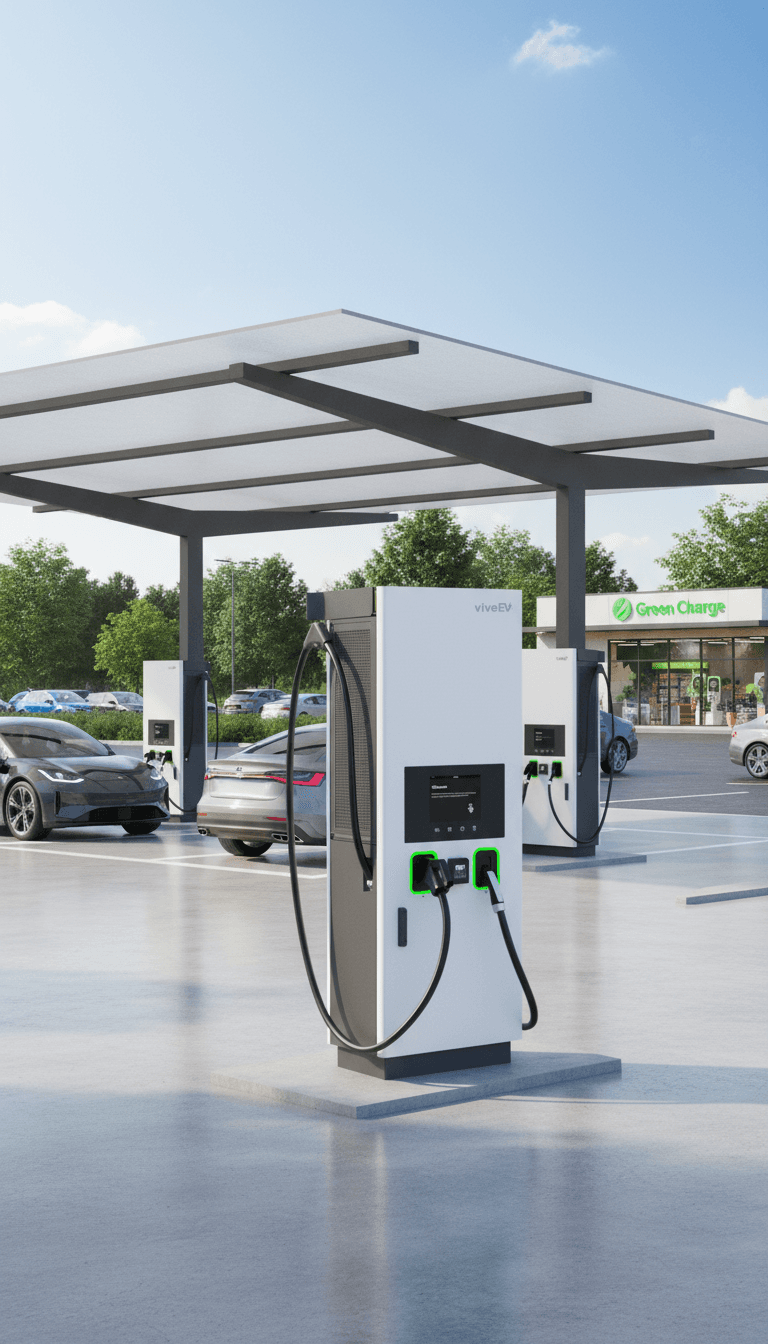

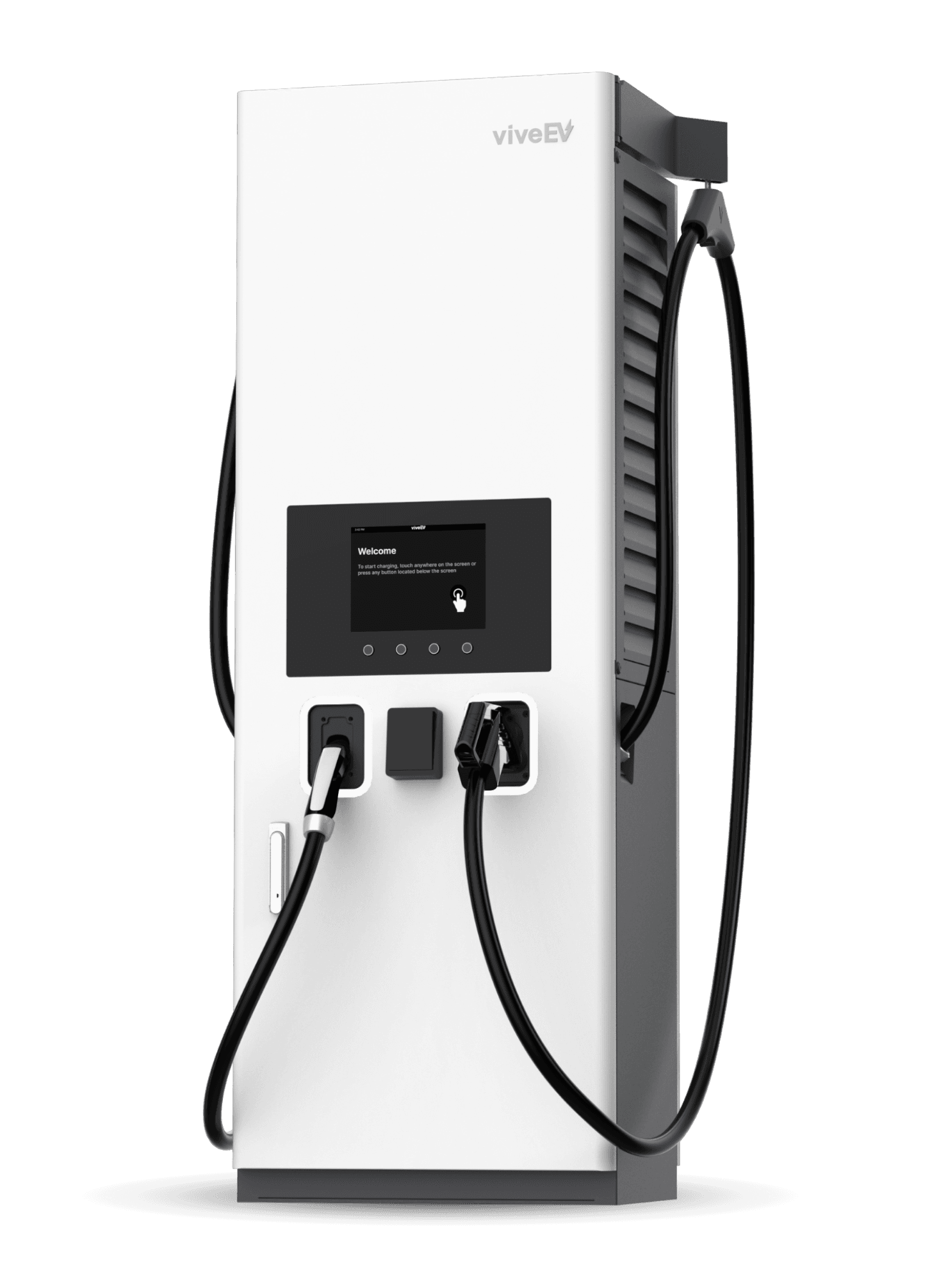

viveEV 180kW EV Charger Dispenser

180kW Pumpy

The integrated design saves on installation costs. By combining multiple charging facilities into one unit, it cuts down significantly on the equipment and labor needed for installation, reducing the initial investment required for setting up and expanding electric vehicle charging infrastructure.

The integrated design saves on installation costs. By combining multiple charging facilities into one unit, it cuts down significantly on the equipment and labor needed for installation, reducing the initial investment required for setting up and expanding electric vehicle charging infrastructure.

viveEV 180kW EV Charger Dispenser

All-in-one

The integrated design of our chargers reduces installation costs by combining multiple charging stations into a single unit, significantly cutting down on the equipment and labor required. This approach leads to a lower initial investment, making it easier and more cost-effective to set up and expand electric Vehicle charging infrastructure.

vvieEV 180k EV Charger Dispenser

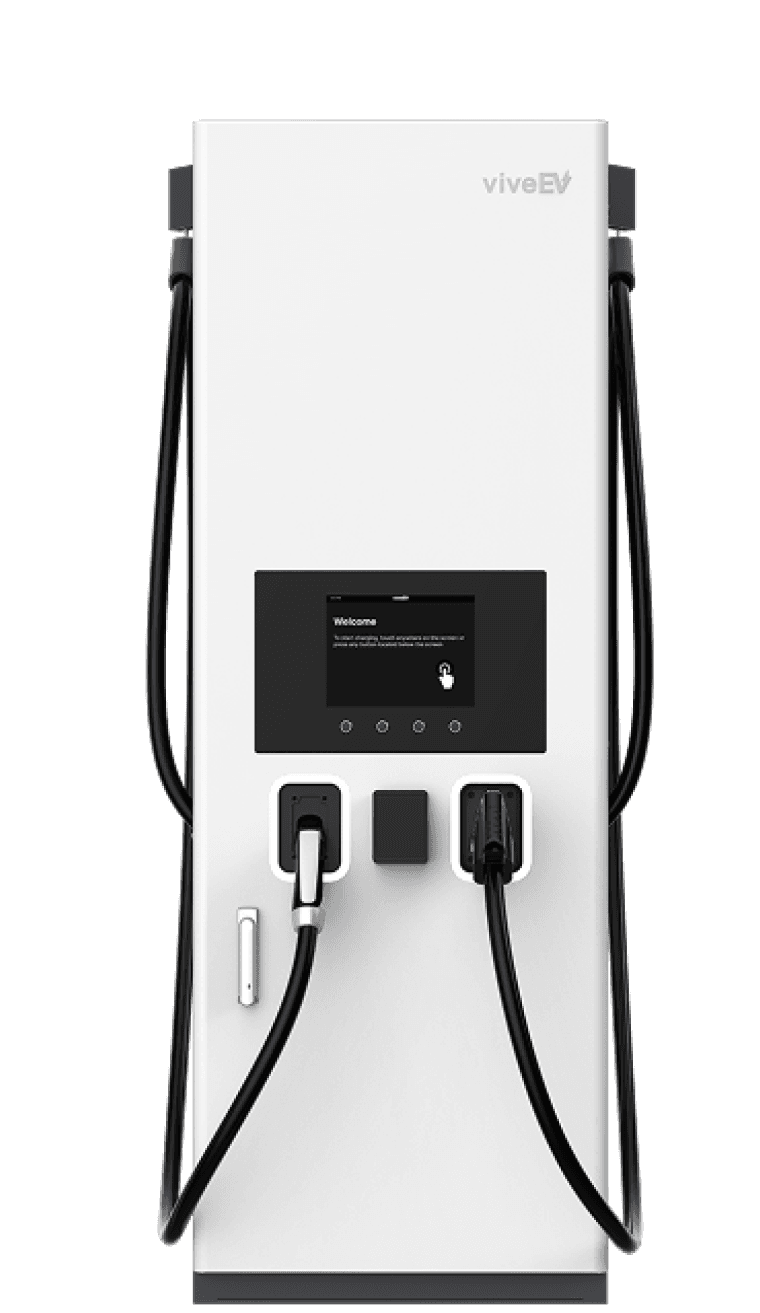

viveEV 180kW EV Charger Dispenser

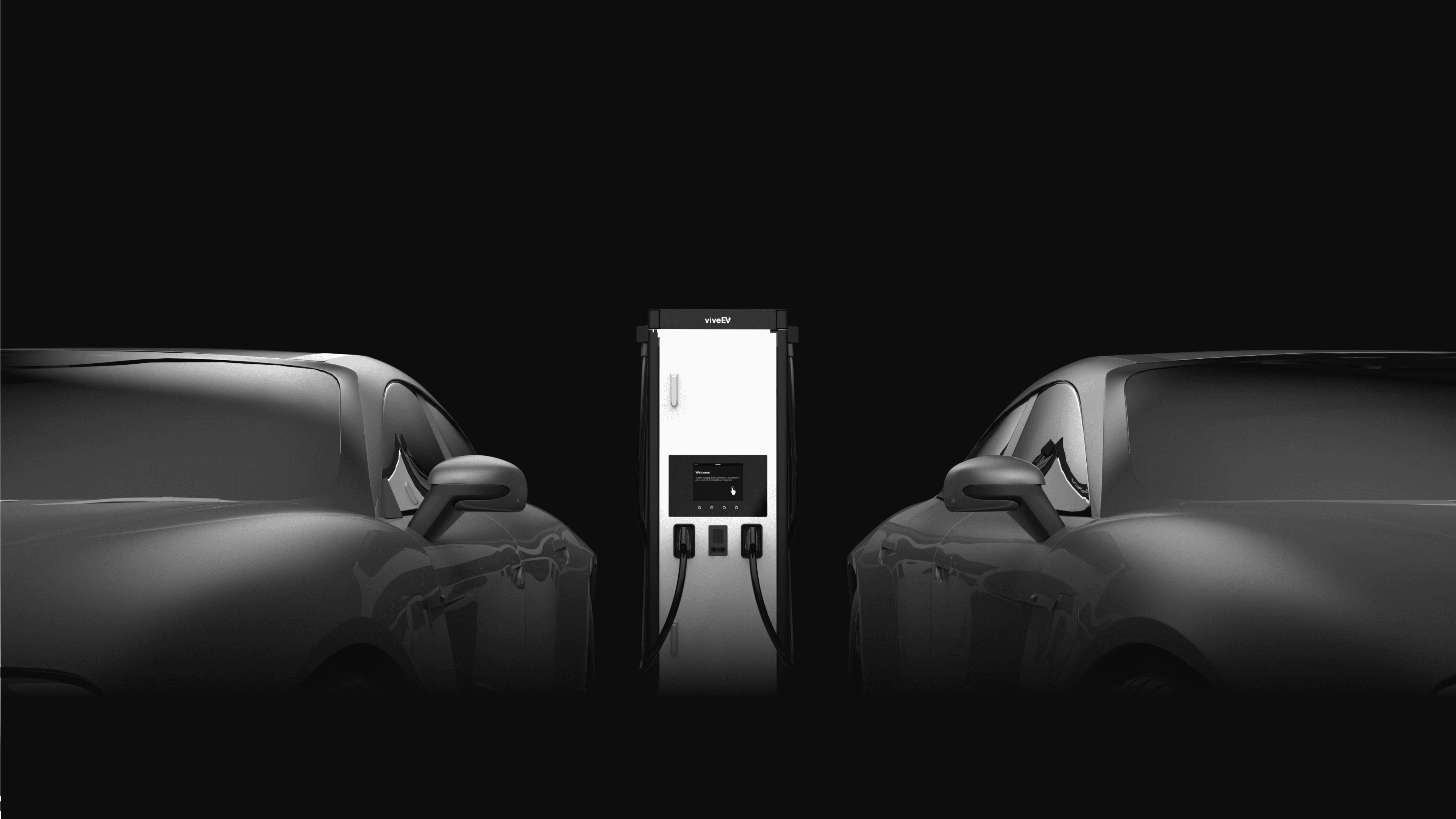

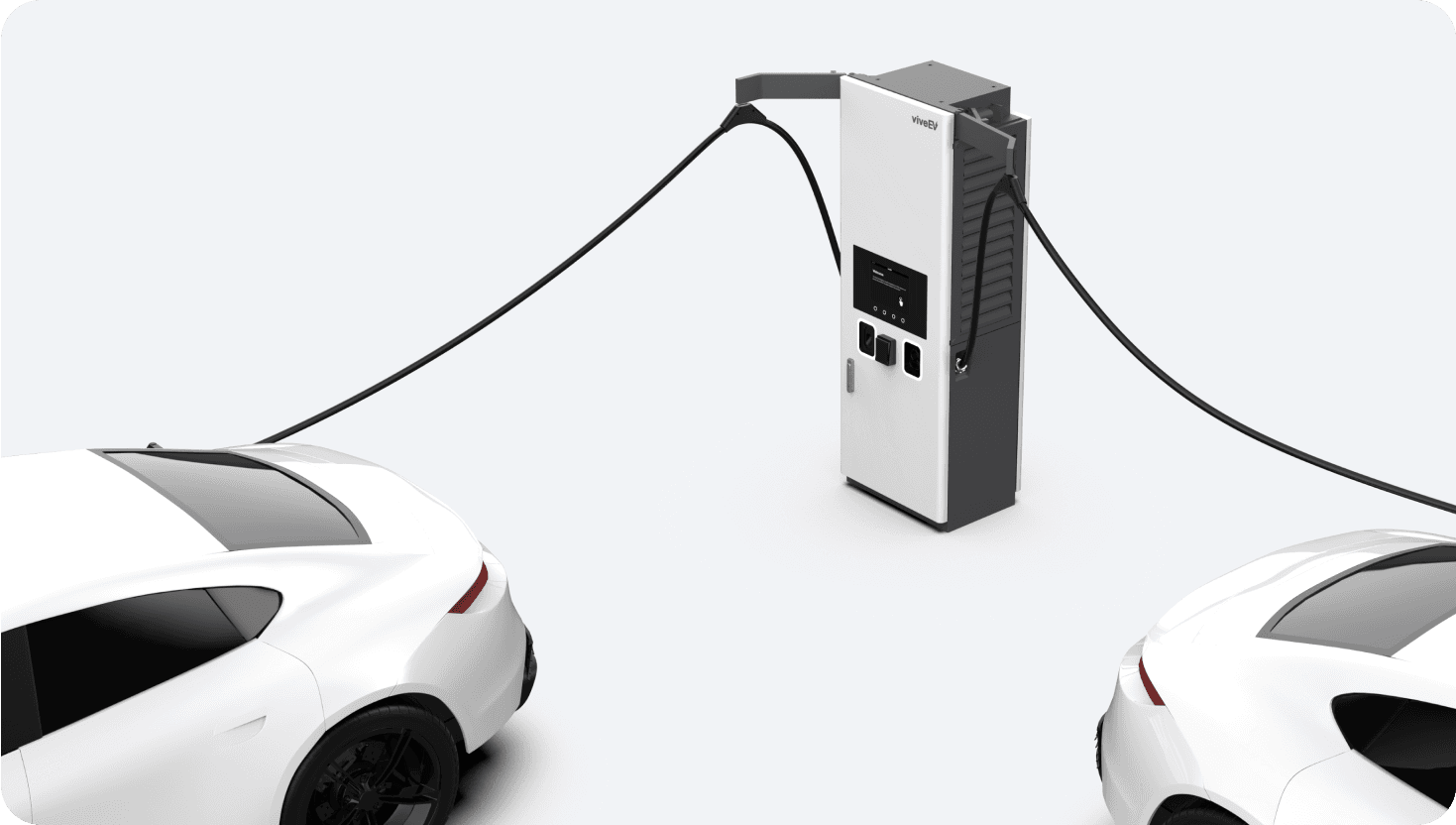

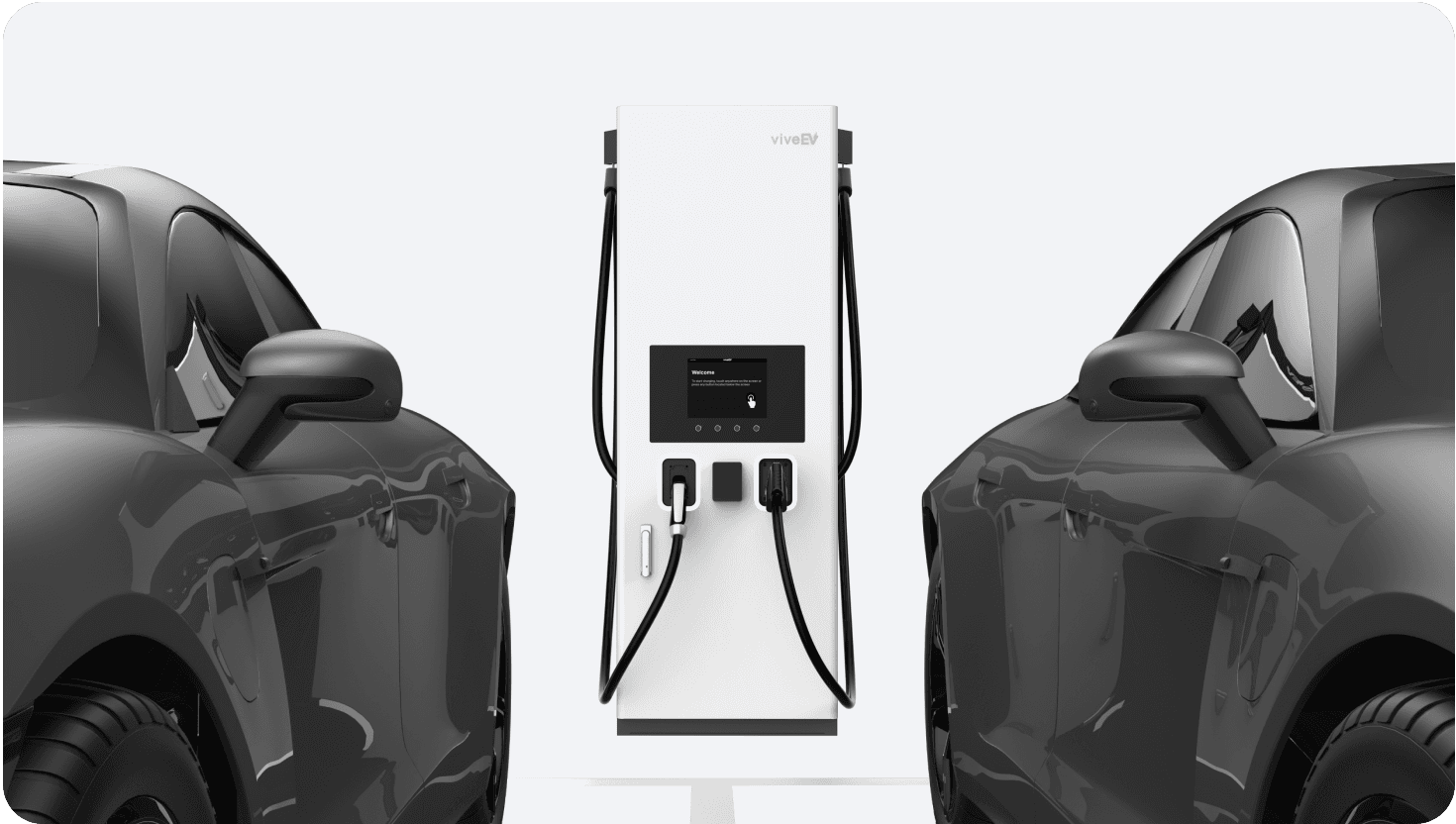

viveEV 180kW EV Charger Double charging station

Charges Together, Effortlessly

Our charging system features ultra-high current charging capability and can power both 150V and 1000V vehicles at maximum efficiency. With a 500A output, it can continuously charge 1000V vehicles at up to 600 kW from a single power cabinet. Additionally, it offers a 400A (max 600A) output without the need for liquid cooling, providing reliable performance under various conditions.

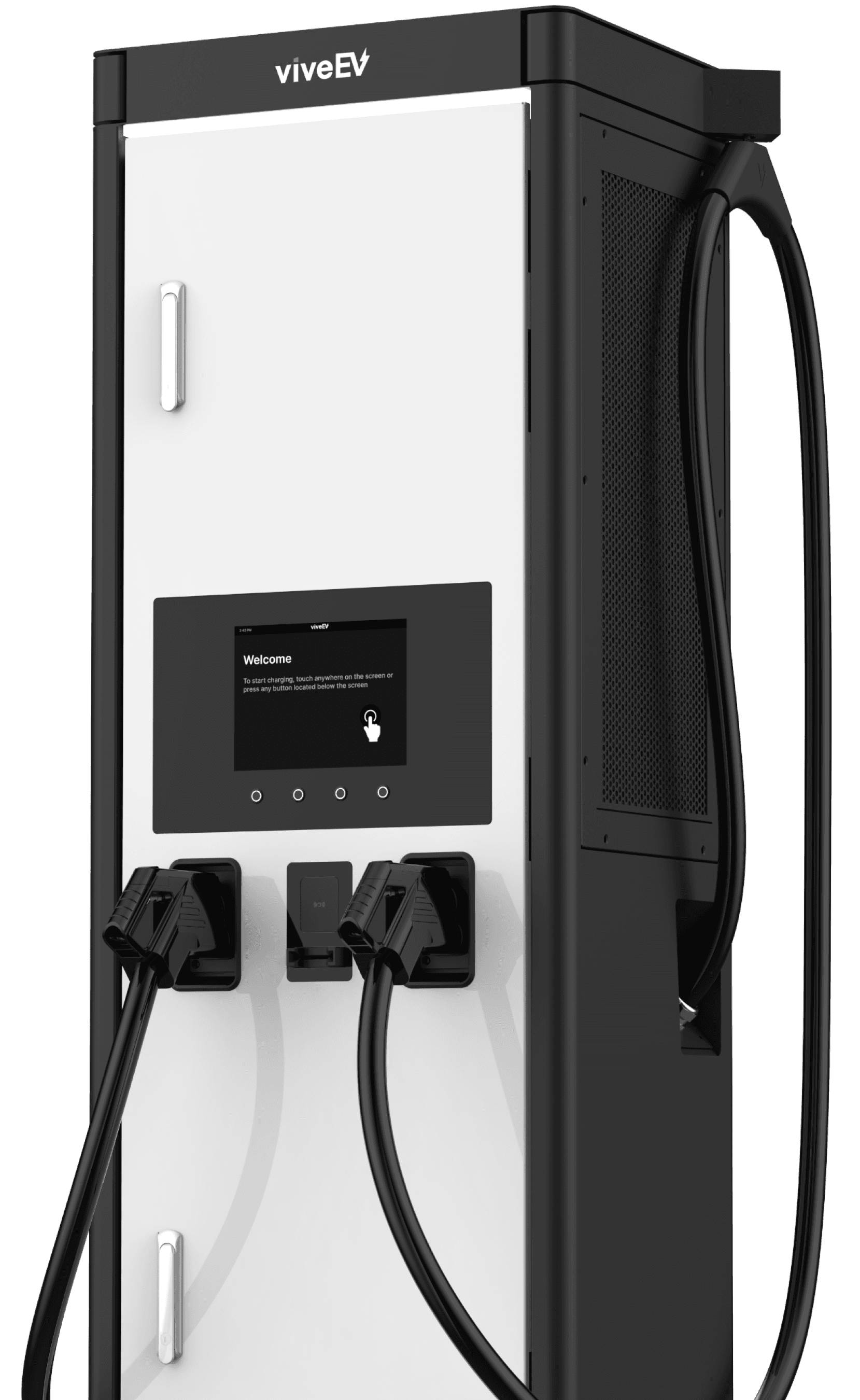

viveEV 180kW EV Charger Air Duct System

Exceptional cooling
efficiency

Our charging system delivers ultra-high current capability, efficiently charging vehicles from 150V to 1000V with support for CCS, NACS, and CHAdeMO connectors. Designed with thermal analysis and duct framing, it minimizes heating through natural airflow, while a modular structure blocks thermal interference for reliable performance.

Customizing

Designed with thermal analysis and duct framing to minimize heating through natural air flow for intake and exhaust. Utilizing a modular room structure for independent functionality to block thermal interference.

viveEV 180kW EV Charger DispenserviveEV 180kW EV Charger Dispenser

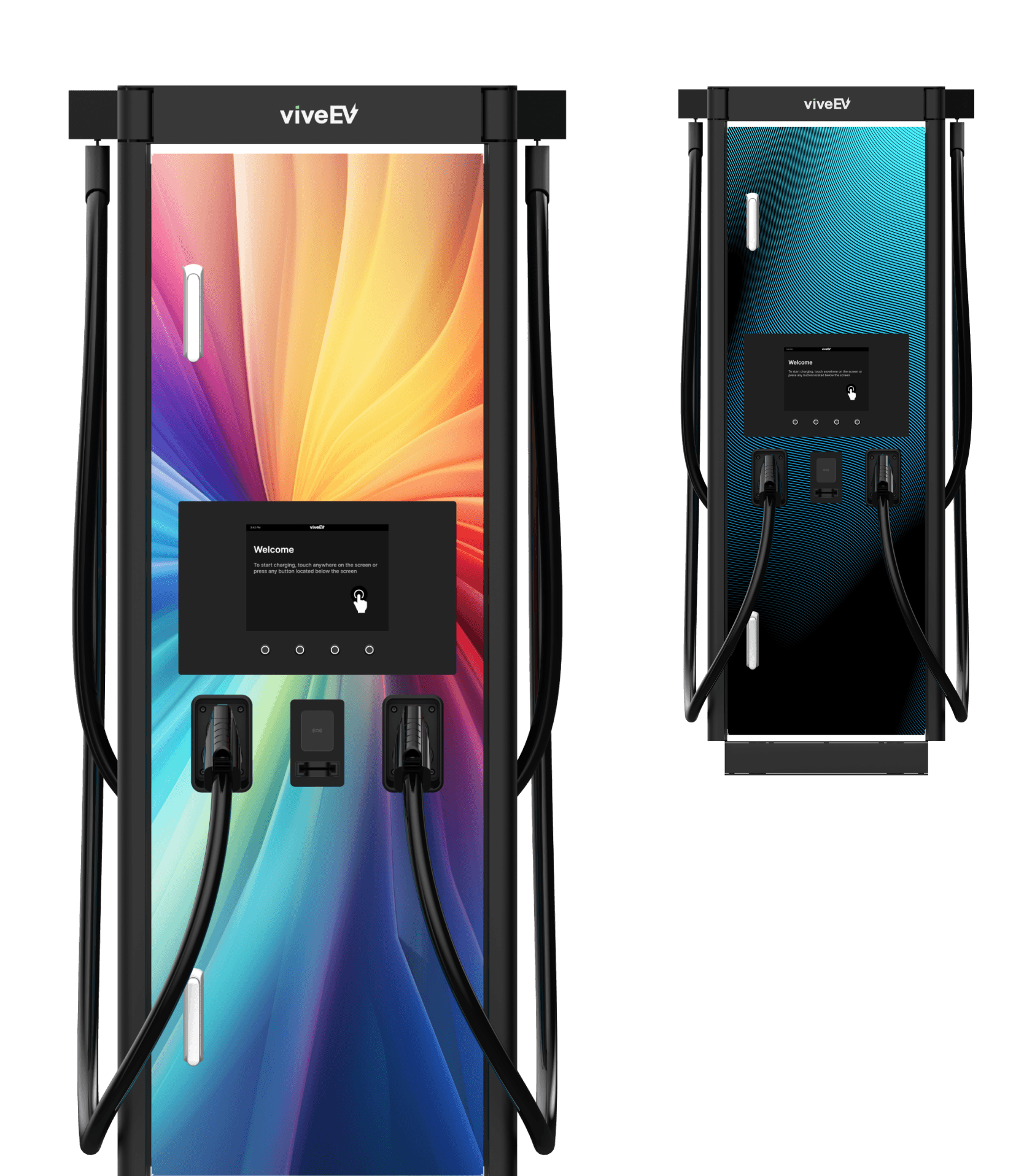

viveEV 180kW EV Charger Dispenser Customizable Sample

Significant others

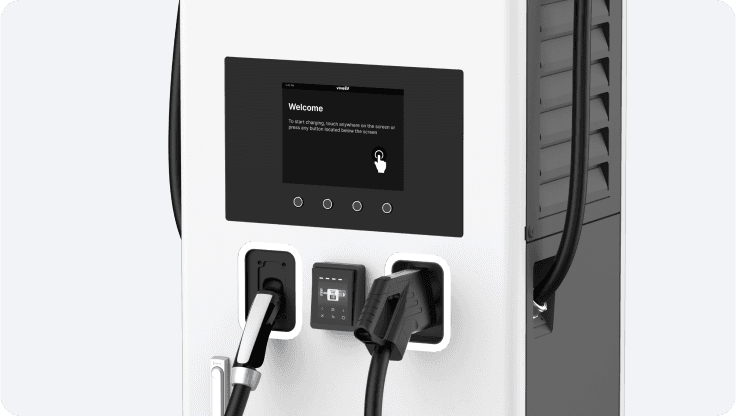

12” Display (Press-button options)

Payment (Credit Card Reader)

OCPP 1.6 (2.0.1 for universal)

ISO 15118 (Plug and Charge Standards)

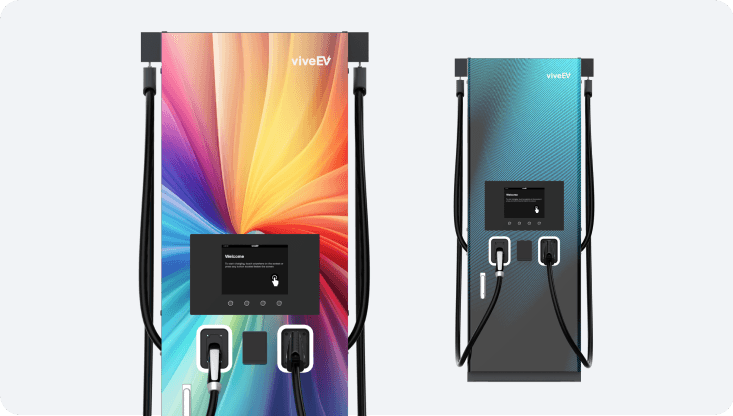

Custom Branding

CCS1 (Max 500A), NACS(Max 380A)

bg

viveEV design

Combining
multiple charging

Exceptional cooling efficiency

Technical specifications

Electrical

AC Input Source

480 Vac ±10% (60 Hz)

AC Input Connection

3-phase(L1, L2, L3) + N + PE

AC Input Current

230 A

Input Power Rating

192 kVA

Output Power

180 kW or 90 kW x 2

Output Voltage Range

CCS1: 150 - 1000 VDC
NACS: 150 - 500 VDC
CHAdeMO: 150 - 500 VDC

Max. DC Output Current

400 A (DC 1 ch) / 200 A (DC 2 ch)

Current THD

<5% @ full power

Power Factor

≥0.99

Efficiency

>95%

Interface

Network Connection

10/100 Base-T Ethernet

Plug Type

CCS1, CHAdeMO, NACS

Payment Method

ISO14443, NFC, RFID, MiFare, ISO7810 / ISO7811 Tracks 1-3

Display

12.1” LCD Screen (Optional Touch Screen)

Environment

Operating Temperature

-20°C to 50°C (Option: -35°C to 50°C) / -4°F to 122°F (Option: -31°F to 122°F)

Humidity

95% Non-Condensing

Enclosure Rating

IP54, NEMA 3R

Altitude

Up to 2000 m

General

Protection

Under Voltage Protection, Over Voltage Protection, Over Current Protection, Over Temperature Protection, etc.

Compliance and Safety

UL2202, UL2231-1, UL2231-2, ISO15118, IEC61851-1, IEC61000-6-3, DIN70121, CHAdeMO 0.9

Dimension (WxDxH)

700 x 833 x 2000 mm / 2.29 x 2.73 x 6.56 ft

Charge Cable Length

6 m (19.69 ft)
